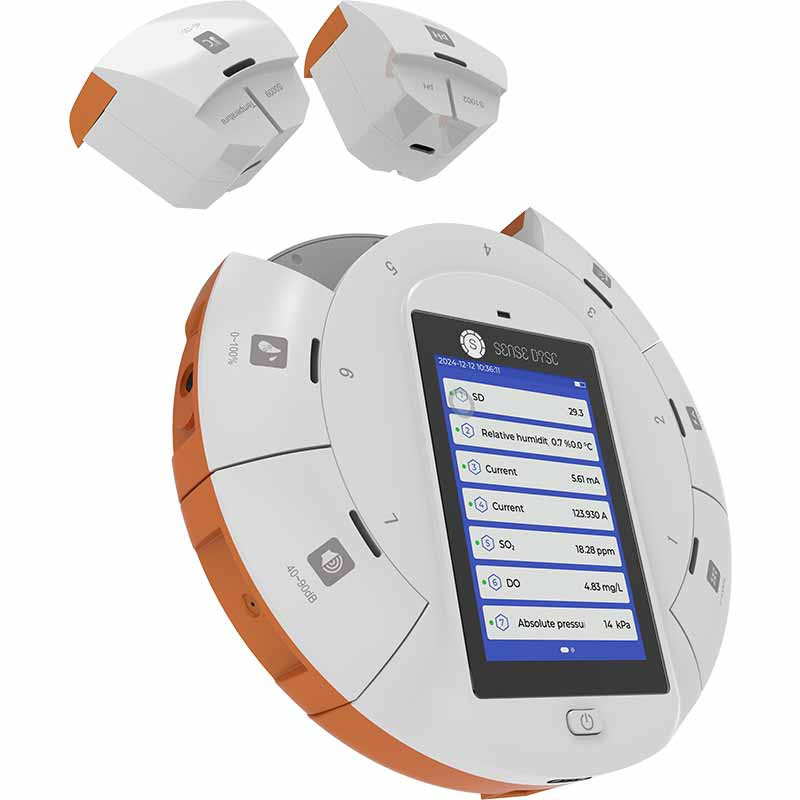

This SenseDisc Pro BASIC digital lab kit is a complete STEM equipment dedicated to school laboratories, specially designed to modernize physics, chemistry, biology, and integrated science classes in middle schools, high schools, and universities.

The package combines an autonomous data acquisition console with a total of 11 sensors (7 external SensoLab receptor/sensor modules, 4 sensors integrated directly into the SenseDisc Pro base, and 1 free universal input for further expansion), accompanied by the dedicated iLab educational analysis software.

Choosing a SenseDisc Pro digital lab kit allows students and teachers to conduct scientific experiments both independently (thanks to the color touchscreen and rechargeable battery) and connected to a interactive screen, PC, Mac, iPad, or Android tablet via USB and Bluetooth.

The iLab software platform collects, displays, and analyzes experimental data in real time, offering advanced graphic processing tools, calibration functions, data tables, and export options for drafting lab reports in line with the school curriculum.

Main Benefits:

Dedicated STEM Solution for School Labs: A SenseDisc Pro BASIC digital lab kit brings all necessary tools for modern digital experiments in primary and secondary education into a single portable setup.

Complete 11-Sensor Package: Includes 4 sensors natively integrated into the console (Altimeter, Barometer, Triaxial Accelerometer, GPS) and 7 external sensors (Voltage, Current, Temperature, Motion, Light, Heart Rate/Pulse, and 1 universal port/input for additional sensors).

Dedicated Educational Software iLab: Intuitive interface designed specifically for school environments, allowing data visualization in dynamic graphs, analog gauges, or tables.

Universal Expansion Input: Beyond the dedicated sensors, the interface features a free universal input to connect any additional sensor from the SensoLab range.

Plug & Play Connectivity: Sensors connected to the SenseDisc Pro console are automatically recognized by the iLab software without complex technical configurations.

Mobility and Autonomy: The internal rechargeable battery makes a SenseDisc Pro digital lab kit ideal for field experiments, geography/ecology lessons, and outdoor STEM activities.

Technical Specifications

1. SenseDisc Pro Datalogger Console

Field of Application: STEM / STEAM Education, middle & high school digital laboratories

Total Available Sensors: 11 sensors (4 integrated in the base + 6 dedicated external sensors + 1 universal input)

Expansion Ports: 1 free universal input

Sampling Accuracy: Up to 100,000 samples/second

Screen: 3.5” TFT Color Touchscreen (320x240 resolution)

Connectivity: Bluetooth, USB, Wi-Fi (optional)

Internal Storage Built-in flash memory for over 100,000 records

Power Supply: Li-Po rechargeable battery (> 8 hours operational autonomy)

Analysis Software: iLab (included, with educational user license)

OS Compatibility: Windows, macOS, iOS, Android

2. iLab Data Analysis Software Specifications

Display Modes: Line graph, analog/digital gauge, data table, GPS map

Analysis Functions: Curve fitting (linear, polynomial, exponential), differentiation, integration, statistics

Real-Time Processing: Sampling and live graphic rendering of data from all connected sensors

Data Export: CSV format, Excel, graph image, lab project saving

Experiment Settings: Sampling frequency adjustment, recording duration, and triggers

3. Integrated Sensors in the SenseDisc Pro Base (4 Sensors)

Altimeter:

Measurement range: -500 m to 9,000 m

Applications: Altitude measurement in outdoor STEM experiments and terrain analysis.

Barometer:

Measurement range: 300 hPa to 1,100 hPa

Applications: Atmospheric pressure monitoring and weather study.

Triaxial Accelerometer:

Measurement range: -6g to +6g (on X, Y, Z axes)

Applications: 3D motion, vibration, and gravity studies.

GPS Sensor:

Applications: Geolocation of data collection points in environmental experiments.

4. SensoLab External Sensors Package (6 External Sensors + 1 Universal Input)

Voltage Sensor:

Applications: Electric voltage measurement and circuit analysis in the physics lab.

Current Sensor:

Applications: Electric current intensity measurement and Ohm's law verification.

Temperature Sensor:

Measurement range: -40 °C to +135 °C | Accuracy: ±0.5 °C

Applications: Thermal process monitoring, heat of reaction, state changes.

Motion / Ultrasonic Sensor:

Measurement range: 0.2 m to 6 m | Resolution: 1 mm

Applications: Position, velocity, and acceleration determination.

Light / Illuminance Sensor:

Measurement range: 0 to 150,000 Lux

Applications: Light intensity and optical phenomena studies.

Heart Rate / Pulse Sensor:

Applications: Heart rate monitoring at rest and after physical exertion in biology and anatomy classes.

Free Universal Input:

Allows connection of any additional external sensor from the range.

STEM School Laboratory Use Cases with iLab Software

1. Physics and Electromagnetism

Electric Circuit Studies: Using voltage and current sensors connected to the iLab software to automatically generate I-V curves and verify Kirchhoff's laws.

Kinematics and Dynamics: Velocity and acceleration determination using the motion sensor, combined with the triaxial accelerometer built into the base and graphically analyzed in iLab.

2. Biology, Anatomy, and Ecology

Vital Functions Monitoring: Using the heart rate sensor to analyze and compare student pulse in real time directly on the iLab software screen.

Environmental and Geography STEM Projects: Field data collection (temperature, light, pressure, altitude) and automatic spatial coordinate correlation via the GPS module built into iLab.

3. Thermodynamics and Chemistry

Heat Transfer: Continuous temperature recording in iLab and applying mathematical curve-fitting functions to heating and cooling curves for understanding thermal phenomena.

Package Contents

SenseDisc Pro Datalogger Console (with 4 built-in sensors: Altimeter, Barometer, Triaxial Accelerometer, GPS)

USB Data and Charging Cable

Power Adapter

Voltage Sensor

Current Sensor

Temperature Sensor

Motion Sensor

Light Sensor

Heart Rate / Pulse Sensor

iLab Data Analysis and Acquisition Software Suite (compatible with Windows, macOS, iOS, Android)

User Manual and Quick STEM Experiment Guide for Teachers and Students
