SenseDisc Pro ENVIRON is a professional experimental kit that enables students to develop a deep ecological awareness.

Specifically designed for environmental education, earth sciences, and ecology, this hardware and software package perfectly complements the modern curriculum, turning the study of nature into a practical, real-data-driven experience.

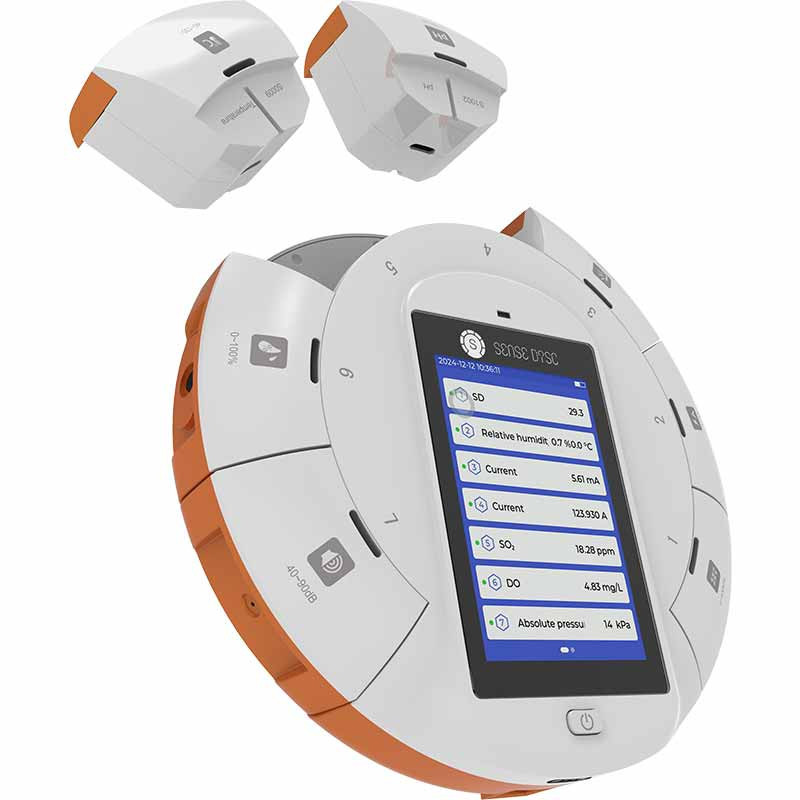

The system is built around the powerful SenseDisc Pro console, a compact autonomous datalogger with a touchscreen, capable of collecting data simultaneously across 7 channels.

Featuring wireless and wired connectivity, an integrated design, and "hot-plug" modular sensors, the kit eliminates cumbersome cables and allows experiments to be conducted both in the science lab and directly in the field (outdoors, near water bodies, or in protected ecosystems).

The kit combines the autonomous data acquisition console with a total of 13 sensors (5 external SensoLab sensor modules, 4 sensors integrated directly into the SenseDisc Pro base, and 4 additional sensors compatible with the universal input), accompanied by the dedicated iLab analysis educational software.

The digital system allows operation both autonomously and via direct connection via USB, Bluetooth, or Wi-Fi to interactive displays, PCs, Macs, tablets, or phones.

Key Advantages of the Digital Laboratory Kit SenseDisc Pro ENVIRON

100% Dedicated Environmental and Ecological Approach: The kit includes specialized sensors for water quality (dissolved oxygen and conductivity) and microclimate (relative humidity, light, temperature, and pressure), providing the ideal tools for ecological education and the study of nature.

Portability and Direct Field Acquisition: The SenseDisc Pro autonomous console features a touchscreen, integrated battery, GPS, and wireless module, allowing students to step out of the lab and take real outdoor measurements near lakes, rivers, or in parks.

"Hot Plug" Modular Architecture: The 7 simultaneous channels and interchangeable sensors allow quick connection of any module, eliminating excess cables and creating a clean, safe, and intuitive working environment for students.

STEM Interdisciplinary Versatility: Seamlessly combines biology, geography, chemistry, and physics, facilitating complex projects ranging from aquatic pollution analysis to the study of the urban heat island effect.

Advanced Software Compatibility (iLab): Ensures real-time data visualization (as curves, dials, or numerical values), automatic generation of detailed graphs, and export of reports useful for school assessment and presentations.

Professional Grade for Middle and High Schools: Offers high measurement accuracy, bringing students closer to real scientific research standards and stimulating critical thinking oriented toward sustainability.

Technical Specifications of the Digital Laboratory Kit SenseDisc Pro ENVIRON

1. SenseDisc Pro Base

Total Sensors Available in Kit: 13 sensors (4 integrated in the base + 5 external sensors + 4 universal input sensors)

Expansion Ports: 1 free universal input for additional sensors.

Sampling Accuracy: Up to 100,000 samples/second

Display: 3.5-inch TFT Color Touchscreen (320x240 resolution)

Connectivity: Bluetooth, USB, Wi-Fi

Internal Storage: Integrated flash memory for over 100,000 records

Power Supply: Rechargeable Li-Po battery (operating autonomy > 8 hours)

Analysis Software: iLab (included, with usage license)

OS Compatibility: Windows, macOS, iOS, Android, Linux

2. iLab Data Analysis Software Specifications

Display Modes: Line graph, analog indicator, digital, data table, GPS map

Analysis Functions: Curve fitting (linear, polynomial, exponential), derivation, integration, statistics

Real-Time Processing: Live sampling and graphical playback of data from all connected sensors

Data Export: CSV format, Excel, graphic image, laboratory project saving

Experiment Settings: Adjustment of sampling frequency, recording duration, and triggers

3. Sensors Integrated in the SenseDisc Pro Base (4 Sensors)

Altimeter: Resolution 0.1 m | Applications: Measuring altitude in field experiments and relief analysis.

Barometer: Range 30-120 kPa, Accuracy 0.1 kPa (relative accuracy 0.006 kPa) | Applications: Monitoring atmospheric pressure and weather stages.

Triaxial Accelerometer: Range -8g to +8g | Resolution 0.016g | Accuracy ±2.5% | Applications: Study of 3D motion, vibrations, and gravity.

GPS Sensor: Position accuracy 2.5m CEP50, Speed accuracy 0.1m/s, Max. update rate 10Hz | Applications: Geolocation of data collection points in environmental experiments.

4. External Sensor Package (5 Sensors + 4 Universal Input Sensors)

1.Temperature Sensor: Measurement range: -40°C to 135°C | Accuracy: ±0.6°C | Resolution: 0.1°C | Experiments on heat absorption and dissipation, boiling/freezing point study, thermodynamic chemical reactions, and Joule's law.

2.Thermocouple Sensor: Measurement range: -40°C to 135°C | Accuracy: ±0.6°C | Resolution: 0.1°C | Advanced thermal experiments, rapid temperature variations, water cooling patterns, friction work.

3.Light Sensor: Measurement range: 0~55000Lux | Accuracy: ±5% | Resolution: 15 Lux | Precise measurement of ambient light intensity, inverse-square law, and photosynthesis.

4.Absolute Pressure Sensor: Measurement range: 0~400kPa | Accuracy: ±2% | Resolution: 0.1kPa | Measuring absolute gas pressure, atmospheric pressure, chemical reactions of metals with acids, gas laws.

5.Heart Rate / Pulse Sensor: Measurement range: 0 ~ 200 bpm | Accuracy: ±2 bpm | Resolution: 1 bpm | Real-time acquisition of heart rate changes during rest and physical exertion.

Free Universal Input

Allows the connection of any other additional external sensor from the range.

The 4 Universal Sensors that can be connected separately to the free universal input:

pH Sensor: Measurement range: 0~14 pH | Accuracy: ±0.2 | Resolution: 0.01 | Rapid measurement of solution pH, garden soil testing, acid rain study, acid-base titrations.

Conductivity Sensor: Measurement range: 0 ~ 20000 μS/cm | Accuracy: ±3%F.S | Resolution: 6μS/cm | Measuring electrical conductivity of solutions, drinking water quality, comparing aqueous electrolytes.

Dissolved Oxygen Sensor: Dissolved Oxygen: 0-20 mg/L (Accuracy: ±0.5 mg/L, Resolution: 0.01 mg/L) | Gas Oxygen: 0-100% (Accuracy: ±2% F.S., Resolution: 0.1%) | Monitoring dissolved oxygen in liquids and gas oxygen in combustion or aquatic ecosystems.

Relative Humidity Sensor: Measurement range: 0~100% | Accuracy: ±4% (10%~90%RH) | Resolution: 0.1% | Microclimate studies, indoor air quality, plant transpiration, and environmental humidity

Use Scenarios for the Digital Laboratory Kit SenseDisc Pro ENVIRON

Aquatic Ecosystem and Water Quality Monitoring: Using the universal input together with the dissolved oxygen sensor and conductivity sensor to assess the ecological health of a river, lake, or water source. Students measure mineralization levels, ionic pollution, and aquatic life support capacity.

Microclimate and Field Weather Studies: Real-time data collection using the relative humidity sensor, temperature sensor, and absolute pressure sensor. Equipment allows comparison of climatic parameters between urban concrete zones, forested parks, and educational greenhouses, highlighting the urban heat island effect and atmospheric dynamics.

Plant Ecology and Light Dynamics: Investigating how light intensity (captured by the light sensor) and thermal variations influence the microclimate around plants, tracking ecological parameters essential for the biological cycle, photosynthesis, and flora adaptation.

Abiotic Factors and Soil Research: Measuring soil and air temperature using the standard temperature sensor and thermocouple, correlating these data with atmospheric humidity to study species habitats or microfauna.

Citizen Science Projects and Ecological Maps: Using integrated GPS and the wireless portability of the SenseDisc Pro console to create local pollution and microclimate maps. Students can collect measurements outdoors during educational hikes and generate detailed ecological reports within the iLab platform.

Contents of the Digital Laboratory Kit SenseDisc Pro ENVIRON

SenseDisc Pro Datalogger Console (with 4 integrated sensors: Altimeter, Barometer, Triaxial Accelerometer, GPS)

USB Data and Charging Cable

Power Adapter

1 x Temperature Sensor

1 x Thermocouple Sensor

1 x Light Sensor

1 x Absolute Pressure Sensor

1 x Heart Rate / Pulse Sensor

1 x Universal Input Module with pH Sensor

1 x Universal Input Module with Conductivity Sensor

1 x Universal Input Module with Dissolved & Gas Oxygen Sensor

1 x Universal Input Module with Relative Humidity Sensor

iLab Data Acquisition and Analysis Software Suite (compatible with Windows, macOS, iOS, Android, Linux, HarmonyOS)

User Manual and Quick Experiment Guide for Teachers and Students
