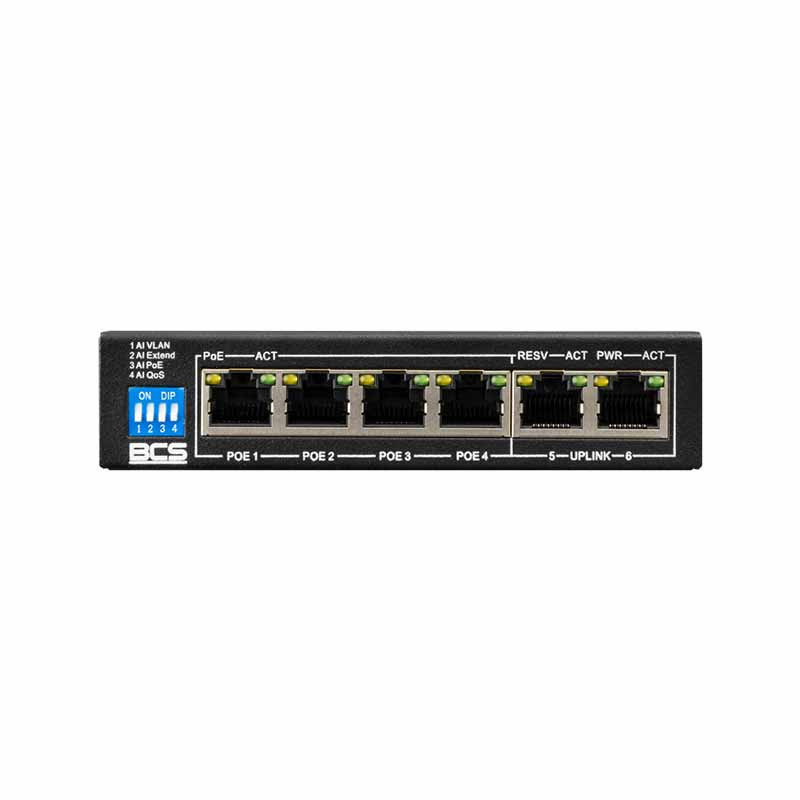

BCS-B-SP04G02G is a 6-port Gigabit PoE switch from the BCS Basic series, specifically designed for IP surveillance systems. The device features 4 PoE ports for powering security cameras and 2 uplink ports for connecting to an NVR or router. The switch includes smart functions (AI) optimized for video transmission and power management, allowing video packet prioritization and automatic restart of frozen devices (Watchdog).

Smart Functions (Working Modes)

AI VLAN: Ports 1, 2, 3, and 4 are isolated from each other to reduce interference and increase security, but they can communicate with the uplink ports (5 and 6).

AI EXTEND: Allows data and power transmission over long distances, up to 250 meters, using Cat5e or Cat6 UTP cables.

AI QOS (Quality of Service): Prioritizes video data packets to ensure smooth and uninterrupted video transmission from security cameras.

AI PoE (Watchdog): Continuously monitors the status of powered devices. If a frozen or non-responding camera is detected, it automatically cuts off and restores power on that specific port to reboot the device.

Technical Specifications

Total Number of Ports: 6 x Gigabit RJ45 ports (10/100/1000 Mbps)

PoE Ports: 4 x Gigabit RJ45 (ports 1 - 4)

Uplink Ports: 2 x Gigabit RJ45 (ports 5 - 6), with auto-MDI/MDIX function

PoE Standards: IEEE802.3af, IEEE802.3at

PoE Pin Assignment: 1,2 (+); 3,6 (-)

Total PoE Power Budget: 60W (maximum 30W per single port)

Switching Capacity (Throughput): 12 Gbps

Packet Forwarding Rate: 1.48 Mpps

MAC Address Table: 8K

LED Indicators: PWR (solid yellow for power), LINK/ACT (green for connected device and activity)

Housing: Metallic, desktop type

Power Supply: External power adapter included (Input: 100~240V AC 50/60Hz, Output: 52V DC, 1.15A)

Operating Temperature: 0 degrees C to +40 degrees C

Operating Humidity: 10% ~ 90% RH (non-condensing)

Dimensions: 125 x 75 x 27 mm

Weight: 0.5 kg
