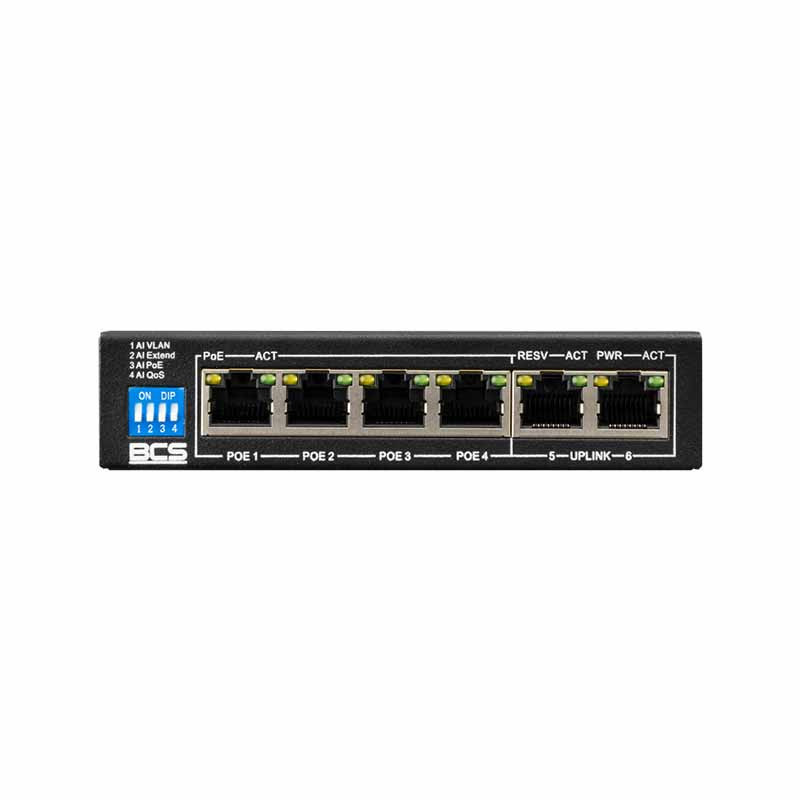

BCS-B-SP0402 is an unmanaged 6-port PoE switch from the BCS BASIC product line, equipped with exPoE technology and optimized for compact IP video surveillance systems. The device features 4 fast LAN PoE ports (10/100Mbps) dedicated to connecting and powering IP cameras, and 2 fast Uplink ports (10/100Mbps) for connections to the network or video recorder (NVR). The switch offers "AI" type intelligent management features through dedicated operating modes (VLAN, EXTEND, QoS, PoE) that improve security, extend transmission distance, and ensure the prioritization of video streams.

Technical specifications

Product line: BCS BASIC

Total number of ports: 6

PoE ports: 4 x RJ45 100Mbps

Uplink ports: 2 x RJ45 100Mbps

IEEE Standards: 802.3af / 802.3at

Operating modes:

-STANDARD: Normal transmission up to 100 meters

-VLAN: Isolates PoE ports 1-4 from each other for enhanced security

-EXTEND: Supports long-distance data transmission and power delivery up to 250 meters (limited to 10Mbps speed on cat5e, cat6 cables)

-QoS (Quality of Service): Prioritizes data packets from video cameras to prevent interruptions

-PoE (Watchdog): Monitors PoE ports and automatically restarts the power supply if a frozen or unresponsive device is detected

Switching capacity (Throughput): 1.2 Gbps

Packet forwarding rate: 1.48 Mpps

MAC address table: 2K

PoE pin assignment: 1,2(+) , 3,6(-)

Maximum PoE budget: 60W in total (maximum 36W per port)

Power supply: 52V DC, 1.15A (power adapter included in the package)

LED indicators: PWR (switch power), LINK/ACT (device connected), PoE (active PoE power supply)

Operating temperature: 0 degrees C to +40 degrees C, maximum humidity 90% RH

Enclosure type: Desktop (metal)

Weight: 0.5 kg

Dimensions (W x D x H): 125 x 75 x 27 mm
