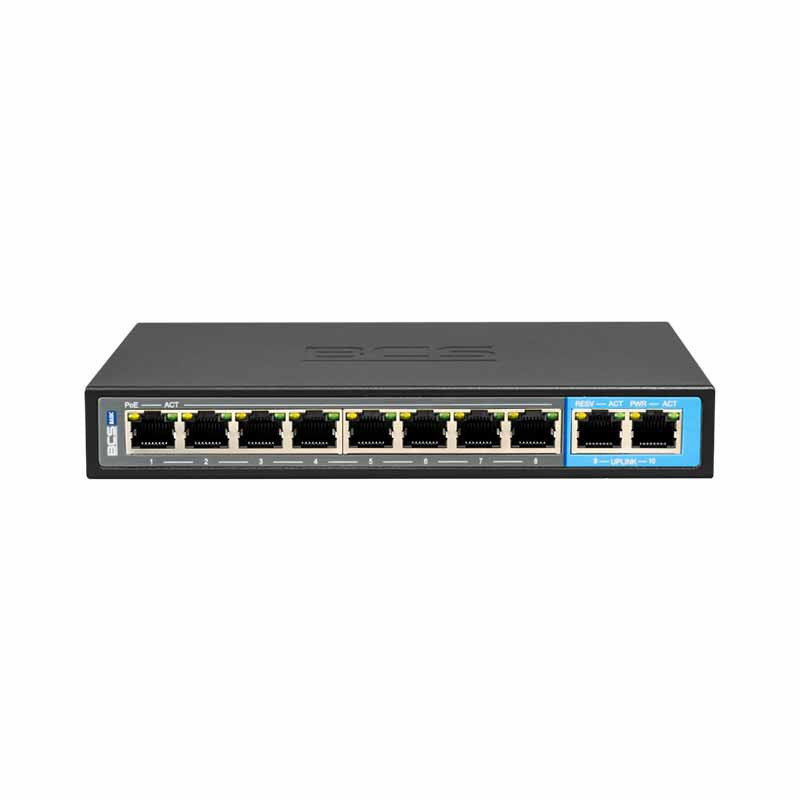

The BCS-B-SP08G02G unmanaged Gigabit PoE switch from the BCS Basic series is the ideal solution for powering and connecting IP video surveillance systems and network devices. Equipped with 8 Gigabit PoE ports (10/100/1000 Mbps) and 2 Gigabit Uplink ports, it offers a switching capacity of 20 Gbps and a total PoE power budget of 96W (max. 30W per port).

Features 4 smart operation modes (AI VLAN, AI EXTEND up to 250m, AI QoS, and AI PoE Watchdog) housed in a compact and durable metal casing.

Key features

AI EXTEND: Enables data transmission and PoE power delivery over extended distances of up to 250 meters (using Cat5e/Cat6 cables), ideal for long-distance IP camera setups.

AI PoE (Watchdog): Real-time monitoring of PoE port status. If a connected device (such as an IP camera) stops responding, the switch automatically power-cycles the corresponding port to reboot the device.

AI VLAN: Isolates PoE ports (1–8) from each other to prevent broadcast storms and enhance network security, allowing communication only through the Uplink ports.

AI QoS (Quality of Service): Prioritizes video data packets to guarantee smooth, lag-free transmission from surveillance cameras.

Technical Specifications

Total Ports: 10 Gigabit Ports (10/100/1000 Mbps)

PoE Ports 8 × RJ45 PoE (802.3af / 802.3at)

Uplink Ports: 2 × RJ45 Gigabit

Total PoE Budget: 96W (maximum 30W per port)

Switching Capacity: 20 Gbps

Packet Forwarding Rate: 14.8 Mpps

Operating Modes: AI VLAN, AI EXTEND (250m), AI QoS, AI PoE

Casing: Metal (Desktop)

Power Supply: External 52V DC, 1.85A (included)

Dimensions: 184 × 94 × 27 mm
