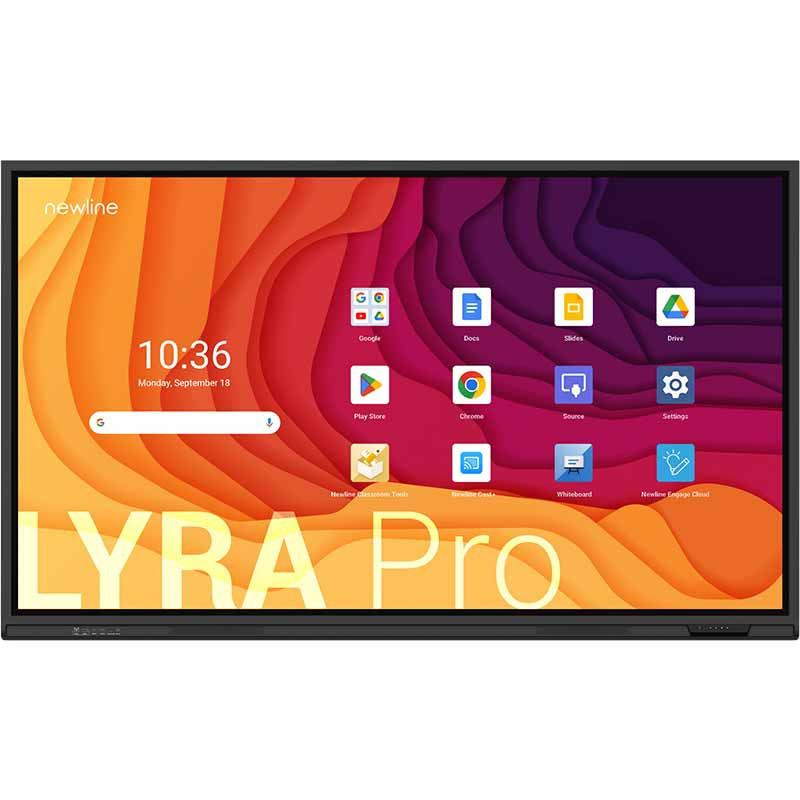

The Newline Lyra Pro 65"(TT-6523QA) is a high-performance interactive display tailored for the education sector. It is Newline’s premier solution featuring native Google EDLA certification, ensuring seamless and secure integration with the Google Workspace ecosystem (Google Drive, Classroom, Docs, etc.) and direct access to the Google Play Store.

Powered by Android 14, the Lyra Pro offers advanced security features, including customizable user profiles. It utilizes Stellar Touch technology for a high-precision writing experience and features a 4K UHD screen with a hardware-based Certified Broad Blue Light Filter, antimicrobial coating, and Zero Bonding technology for superior visual clarity and durability.

Technical Specifications

Display and Screen

Diagonal: 65 inch

Active Area: 1428 x 803 mm

Backlight Technology: Direct LED (Wide Color Gamut + Anti Blue Light)

Resolution: 3840 x 2160 (4K UHD)

Brightness: 450 cd/m2

Contrast Ratio: 5000:1

Response Time: 5 ms

Viewing Angle: 178 degrees

Surface Protection: Anti-glare, Anti-fingerprint, and Antimicrobial Tempered Glass (7H Hardness)

Bonding Technology: Certified Zero Bonding

System Performance:

Operating System: Android 14 (Google EDLA Certified)

Chipset (SoC): Amlogic A311D2 octa-core (4 x Cortex-A73 at 2.2 GHz + 4 x Cortex-A53 at 2.0 GHz)

GPU: Arm Mali-G52

RAM: 8 GB DDR4

Internal Storage: 128 GB

Connectivity: Wi-Fi 6 & Bluetooth 5.2 (Integrated replaceable module)

Touch and Writing:

Touch Technology: Stellar Touch Technology

Touch Points: 50 Points (Windows) / 20 Points (Android)

Accuracy: +/- 1 mm

Input Method: Passive Stylus (2 included), Finger, Palm (includes Palm Rejection)

Audio and Connectivity:

Speakers: 2 x 20 W (Front-facing)

Front I/O Ports: 1x USB-C (65W Power Delivery), 1x HDMI 2.1, 1x USB Touch, 2x USB 3.2 Type-A, 1x Mic In.

Rear I/O Ports: 2x HDMI 2.1, 1x DisplayPort 1.2, 3x USB Touch, 1x USB-C (15W Power Delivery), 3x USB 3.2 Type-A, 1x HDMI Out 2.0, RS232, RJ45 (Gigabit In/Out), OPS Slot, SDM-S Slot, SPDIF, Audio Out.

Physical Dimensions and Power:

Outline Dimensions: 1513 x 927 x 118 mm

Net Weight: 39 Kg

VESA Mount: 600 x 400 mm

Power Consumption (Eco Mode): 106 W

Standby Power Consumption: < 0.5 W
