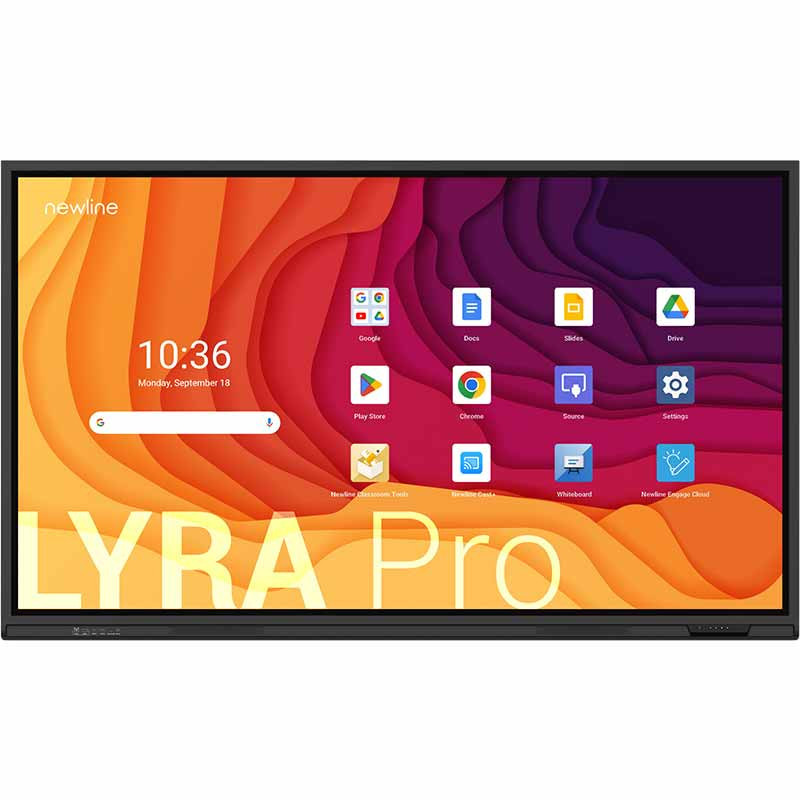

The Newline Lyra Pro( TT-5523QA) is a cutting-edge interactive display designed to transform the educational experience. It is an "all-in-one" solution featuring native Google EDLA certification, providing seamless integration with the entire Google Workspace ecosystem. Users can access apps like Google Drive, Google Classroom, YouTube, and the full Google Play Store directly from the screen.

Equipped with Android 14, Lyra Pro ensures enhanced security and the ability to create personalized user profiles. The 4K screen integrates Stellar Touch technology for a natural and precise writing experience, an antimicrobial coating for user safety, and a hardware-based Certified Blue Light Filter to protect the vision of teachers and students.

Technical Specifications

Display and Screen

Diagonal: 55 inch

Light Source: LED with Certified Broad Blue Light Filter

Display Area: 1211 x 682 mm

Aspect Ratio: 16:9

Resolution: 3840 x 2160 (4K UHD)

Colors: 1.07 Billion (10-bit)

Brightness: 450 cd/m2

Contrast Ratio: 5000:1

Response Time: 6 ms

Viewing Angle: 178 degrees

Glass Technology: Zero Bonding, Antimicrobial, Anti-Glare, Anti-Fingerprint

Life Time: minimum 50,000 hours

Interactive System (Touch)

Touch Technology: Stellar Touch (Infrared)

Touch Points: 50 points under Windows / 20 points under Android, MAC, Linux

Accuracy: +/- 1 mm

Interaction Methods: Stylus (2mm tip), Finger, Palm

Hardware Performance (System)

Operating System: Android 14 (Google EDLA Certified)

Chipset: Amlogic A311D2 (Octa-Core: 4x Cortex-A73 at 2.2GHz, 4x Cortex-A53 at 2.0GHz)

RAM: 8 GB (DDR4)

Storage: 128 GB

Wi-Fi: Version 6 (2.4GHz / 5GHz / 6GHz)

Bluetooth: Version 5.2

Audio

Speakers: 2 x 20W (integrated)

Connectivity

Front Ports: 1x USB-C (65W, Video, Touch, Data), 1x HDMI 2.0, 1x USB-B (Touch), 1x USB-A 3.0, 1x Microphone In

Rear Ports: 2x HDMI 2.0, 1x DisplayPort 1.2, 1x USB-B 3.0 (Touch), 2x USB-A 3.0, 1x USB-C (Data), 2x LAN (Gigabit), 1x RS232, 1x Audio Out (Jack), 1x SPDIF Out

Expansion Slots: 1x OPS Slot (80-pin), 1x SDM-S Slot

Dimensions and Weight

Product Dimensions: 1294 x 808 x 101 mm

Net Weight: 31.5 kg

VESA Mount: 400 x 400 mm

Power Consumption

Standard Consumption: 104 W

Standby Consumption: under 0.5 W
