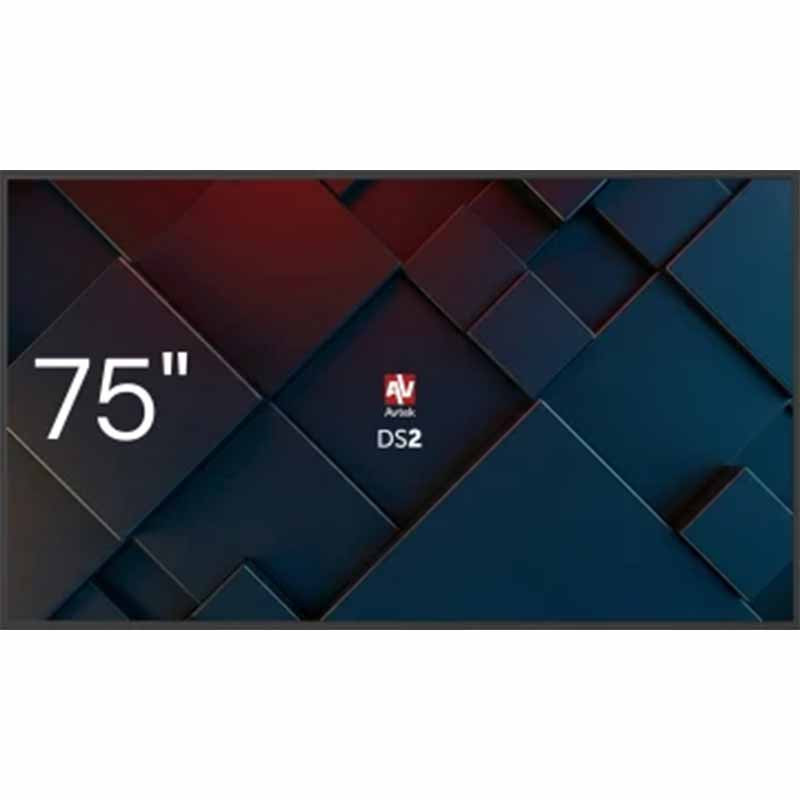

Avtek DS2 75 is a professional display with a 75-inch diagonal and native 4K UHD resolution, specially designed for digital signage applications and presentations in medium to large meeting rooms or corporate spaces. This screen is built for continuous 24/7 operation and offers outstanding visibility thanks to its high brightness and ADS-type panel with a matte finish (Haze 25%), which effectively reduces ambient light reflections.

Equipped with a modern Android 14 operating system, the monitor provides access to advanced wireless screen sharing applications (AirPlay, Chromecast, Miracast) via the included Wi-Fi module, as well as native integration with Avtek CMS software for centralized content management through the Cloud. The robust housing with a ultra-slim 15.9 mm symmetrical bezel allows flexible installation in both horizontal (Landscape) and vertical (Portrait) orientations.

Technical Specification

Screen

Screen diagonal: 75 inches (75")

Panel technology: LCD ADS

Aspect ratio: 16:9

Native resolution: 3840 x 2160 (UHD / 4K)

Panel response time: 6.5 ms

Refresh rate: 60 Hz

Color depth: 1.07 billion colors (10-bit)

Brightness: 500 cd/m² (typical) / 450 cd/m² (minimum)

Typical contrast ratio: 1200:1

Surface treatment: Matte, Anti-glare (Haze 25%)

Viewing angle: 178° horizontal / 178° vertical

Panel lifespan: > 50,000 hours

Operating regime: 24/7 (continuous use)

Screen orientation: Landscape mode and Portrait mode

System and Smart Features:

Operating system: Android 14

Internal hardware configuration: 4 GB RAM / 32 GB Internal storage memory

Wireless connectivity: Wi-Fi / Bluetooth module included as standard

Built-in smart functions: AirPlay, Chromecast, Miracast, Bytello ScreenShare, automatic power on/off scheduling, content scheduling (Content schedule), Web CMS (local management via IP) and Avtek CMS (cloud management), web browser, screen cloning function (Screen copy), video wall mode (up to 3x3 matrix), PIP (Picture-in-Picture), PBP (Picture-by-Picture), automatic interface rotation.

Connectivity

HDMI video inputs: 3 x HDMI 2.0 (HDCP 2.1, CEC, ARC support)

HDMI video outputs: 1 x HDMI (supports Screen copy and video wall mode)

USB-C port: 1 x multifunctional port (supports DisplayPort 1.2, Power Delivery 65W charging, and LAN 100M network sharing)

Communication and data ports: RJ-45 (LAN), RS232 (input/output), USB 2.0, USB 3.0

PC expansion slot: Dedicated OPS slot (Open Pluggable Specification)

Audio outputs: 1 x 3.5 mm Mini Jack, 1 x Optical/Coaxial output (SPDIF)

Integrated audio system: 2 internal speakers x 16 W

Dimensions:

Bezel width: 15.9 mm (Symmetrical on all 4 sides)

Physical monitor dimensions (W x H x D): 1685.6 × 963.7 × 68 mm

Total thickness with standard wall bracket included: 101 mm

VESA wall mount standard: 800 x 600 mm (M8 x 25 mm screws)

Net weight (without packaging): 40.8 kg

Gross weight (with packaging included): 56.95 kg

Package / box dimensions (W x D x H): 1863 × 225 × 1090 mm

Power

Power requirements: 100-240V ~ 50/60Hz

Power consumption in Standby mode: ≤ 0.5 W

Operating temperature: 0°C to 40°C

Allowable humidity (operation and storage): 10% - 90% (non-condensing)

Standard Package Content:

Monitor Avtek DS2 75

Wi-Fi / Bluetooth module

HDMI cable

Power cable

Remote control

Quick Start guide

Wall mount bracket

Warranty: 3 years
