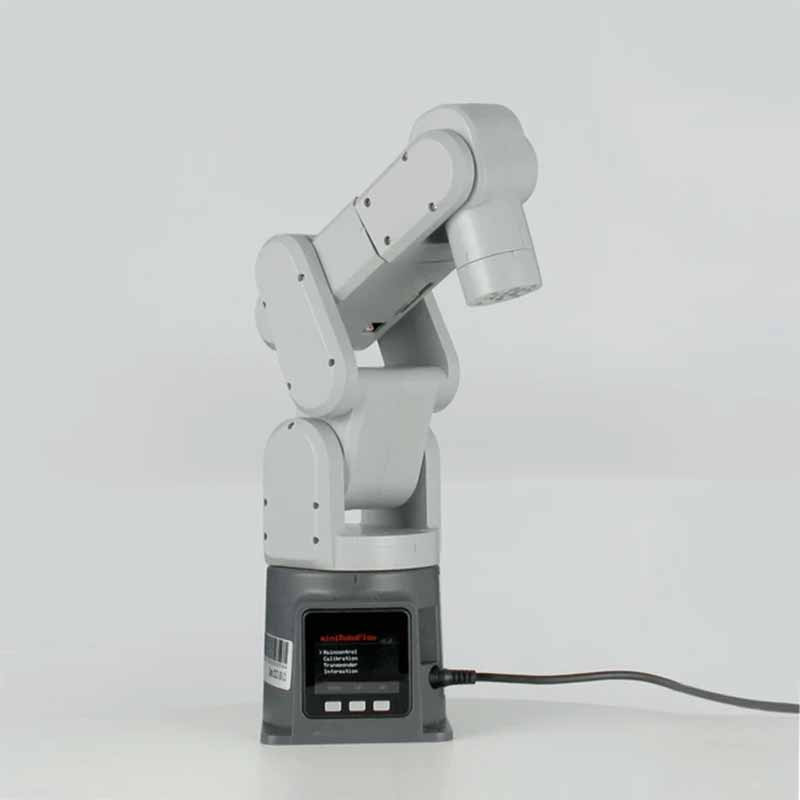

Elephant Robotics mechArm 270 M5Stack: Compact 6-Axis Robotic Arm is the world's most compact 6-axis collaborative robotic arm, specifically designed for makers, creators, universities, and research environments.

Featuring a classical centrosymmetric industrial structure, this desktop robot offers maximum flexibility and a fast learning experience in robotics, kinematics, and automation.

The main control unit is based on the M5Stack Basic ecosystem (ESP32), being equipped with a 2-inch color IPS screen and programmable buttons.

At the end of the arm (end-effector), the ATOM module integrates a 5x5 RGB LED matrix and dedicated interfaces for sensors and gripping devices (grippers/suction pumps).

The arm is extremely versatile on the programming side: it allows drag teaching, block-by-block visual programming via myBlockly / UIFlow, up to advanced development using Python, C++, C#, JavaScript, Arduino, and ROS/ MoveIt robotic simulation packages.

Key advantages and technical performance mechArm 270 M5

Compact and robust industrial design: Centrosymmetric architecture with 6 degrees of freedom (6-DOF), a net weight of 1 kg and a nominal payload of 250 g.

Dual-screen ecosystem and M5Stack technology: Intuitive control interface based on the base IPS screen and the end-effector LED matrix.

High-precision control: Use of servomotors equipped with high-precision magnetic encoders, ensuring a repositioning accuracy of ±0.5 mm.

Extensive software compatibility: Native support for the myStudio application for firmware updating, dedicated myBlockly libraries for beginners, and advanced SDKs for Python, C++, Arduino, and ROS.

Hardware modularity and LEGO compatibility: The base and end-flange structure allows integration with elements from the LEGO ecosystem and standard M4 clamping systems.

Application fields and use cases

STEM and university education: Use as a didactic support within robotics laboratories for the study of forward and inverse kinematics, as well as embedded systems programming.

Research and development (R&D): Rapid prototyping and algorithm testing for trajectory planning in ROS/MoveIt simulation environments.

Artificial vision systems (AI): Implementation in optical object and shape recognition applications, visual inspection, and geometric calibration in combination with dedicated vision kits.

Pick & Place and Industry 4.0 applications: Automated sorting and manipulation of small parts using adaptive effectors or vacuum pneumatic systems.

Technical specifications mechArm 270 M5

Degrees of Freedom (DOF): 6 axes

Maximum reach: 270 mm

Payload: 250 g

Net weight: 1.0 kg

Repositioning accuracy: ±0.5 mm

Maximum movement speed: 120°/s

Control unit (Base): M5Stack Basic (ESP32)

End-effector controller: ATOM Module (5x5 RGB LED Matrix)

Power supply: DC 8~12V / 5A (DC 5.5 x 2.5 mm connector)

Communication interfaces: USB Type-C, Grove ports, M-BUS / DuPont pins

Joint range of motion

J1: -165° ~ +165°

J2: -90° ~ +90°

J3: -180° ~ +65°

J4: -165° ~ +165°

J5: -115° ~ +115°

J6: -175° ~ +175°

Supported languages and platforms: myStudio (firmware & maintenance), Python, C++, C#, Arduino, JavaScript, ROS/ROS2, myBlockly, UIFlow

Environmental conditions: Operating temperature: -10°C ~ 45°C; humidity: 20% ~ 70% (indoor use)

Standard package content mechArm

1x Elephant Robotics mechArm 270 M5Stack robotic arm

1x Dedicated power supply unit (8.4V–12V / 5A)

1x USB Type-C communication cable

1x Set of jumper / DuPont connection cables

1x Stainless steel screw set (M4*35)

1x Hexagonal key (Allen wrench)

1x Technical documentation and quick start guide

Optional accessories mechArm

Adaptive electric gripper: Recommended for gripping and manipulating objects with various geometries.

Vacuum pump with suction cup: Intended for handling objects with smooth and flat surfaces.

Mechanical mounting systems:

Flat base with suction cups for mounting on smooth surfaces.

G-clamp for secure mounting on the edge of the workbench.

Artificial Intelligence Kit (AI Kit): Assembly composed of a web camera and mechanical mounting elements for facial recognition, chromatic, and image processing applications.

myAGV mobile robot: Mobile robotic platform equipped with Mecanum wheels, intended for the development of autonomous transport applications.
