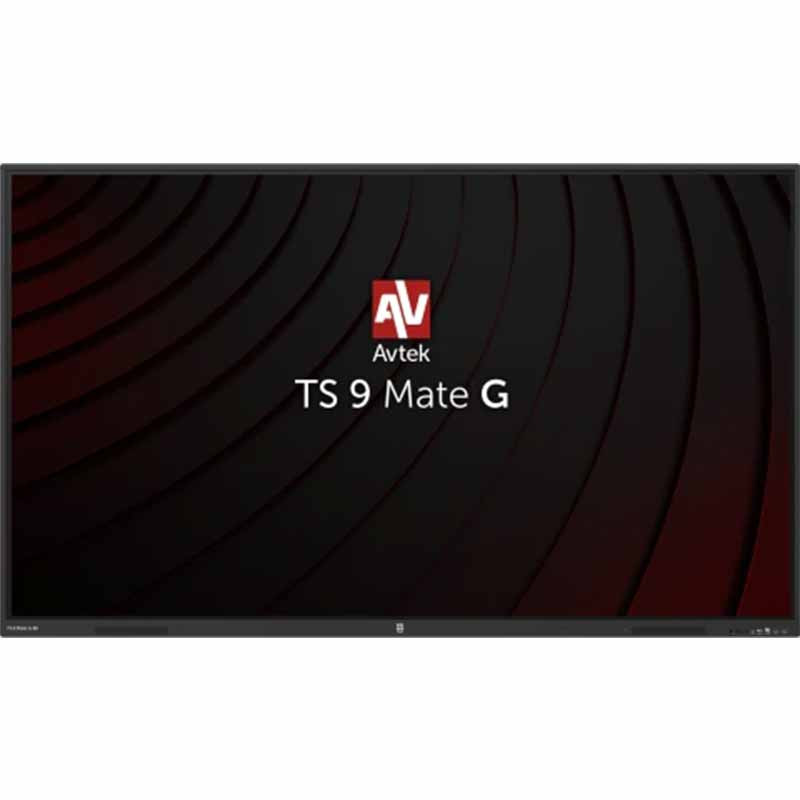

The Avtek TS 9 Mate G 86 is a premium, large-format 86-inch interactive display, ideally suited for auditoriums, spacious lecture halls, and large corporate meeting rooms. It delivers a major performance boost (up to twice as fast as the previous Mate 8.1 series), boots up in less than 35 seconds, and responds instantly to touch interactions.

It runs on the modern Android 16 operating system and features official Google EDLA certification, granting native and secure access to the Google Play Store and the Google app ecosystem. The display utilizes advanced Zero bonding GEN 2 technology, offers a high brightness of 500 cd/m2 with automatic adaptation based on ambient light, Anti-glare protection, and a hardware and software-based blue light filter to effectively protect users' eyes.

Technical specifications

Screen

Diagonal: 86 inches

Matrix technology: VA

Backlight: Direct LED

Resolution: 4K / UHD (3840 x 2160)

Display image size: 1895 x 1066 mm

Pixel pitch: 0.4935 x 0.4935 mm

Aspect ratio: 16:9

Refresh rate: 60 Hz

Matrix response time: 6.5 ms

Display colors: 1.07 billion (10-bit)

Brightness: 500 cd/m2

Adaptive brightness: Yes (built-in light sensor)

Contrast ratio: 5000:1

Viewing angles: 178 degrees (horizontal / vertical)

Matrix lifetime: ≥50,000 hours

Front glass: 3 mm thickness, hardness > 9H (7 Mohs)

Touch Specifications:

Technology: Infrared (IR)

Number of touch points: 50

Registration method: Finger or any opaque object (minimum diameter 3 mm)

Touch response time: Under 10 ms

Accuracy: +1 mm

Touch resolution: 32768 x 32768 points

Supported operating systems: Windows (11/10/8/7/XP), Android, Linux, Mac OS X, Chrome

Dual-color simultaneous writing: Yes

Built-in Android Module:

System version: Android 16

Certification: Google EDLA

Processor (CPU): Rockchip 3576

Graphics card (GPU): ARM Mali G52 MC3

RAM memory: 8 GB

Storage memory (Flash): 64 GB

Connectivity: Built-in WiFi 6 (802.11 a/b/g/n/ac/ax on 2.4 GHz and 5 GHz) and Bluetooth 5.4

Connectors(Inputs / Outputs):

Side HDMI inputs: 2

Front HDMI inputs: 1

HDMI outputs: 1

Front USB ports: 2x USB-A 3.0, 1x USB-C 3.1 Gen 1

Side USB ports: 1x USB-A 3.0, 1x USB-A 2.0

USB-B ports (Touch): 1x front, 1x side (USB-B 2.0)

Audio ports: 1x Input / 1x Output (3.5 mm jack)

Other ports: 1x SPDIF, 1x RS232, 1x RJ45 (LAN)

OPS computer slot: Yes (compatible)

Built-in Audio System:

Speakers: 2 x 25 W (90 dB SPL)

Physical Data and Power Supply:

Display dimensions: 1957 x 1160 x 100.1 mm

Dimensions with packaging: 2110 x 1295 x 179 mm

Net weight: 50.70 kg

Gross weight (with packaging): 66.85 kg

VESA mounting standard: 800 x 400 mm

Wall mount included: Yes

Recommended operating time: 24/7

Power supply: 100-240 V AC, 50/60 Hz, 4.5 A

Power consumption: Standby mode under 0.5 W / Nominal consumption 165 W / Maximum consumption 440 W

Software Features:

Menu languages (OSD): English, Polish, German, Slovak, Czech, Ukrainian, Spanish, French, Italian, etc.

Note-taking app: Yes, Note app included (supports annotations over any signal source)

Other tools: Custom logo upload capability, input source renaming, built-in electronic voting tools

Accessories Included in the Package:

Power cable (3 m), USB cable (3 m), HDMI cable (3 m), 2 x pens (styli) with antibacterial coating, remote control, quick start guide, wall mounting bracket.
