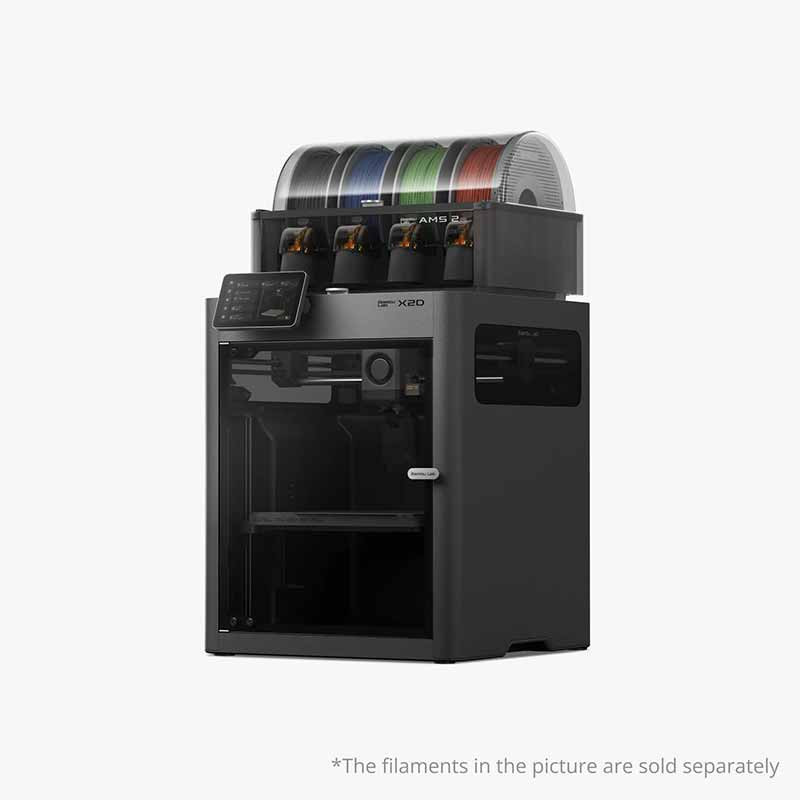

The Bambu Lab X2D introduces a hybrid extrusion system: a primary Direct Drive print head (for precision and flexible materials) and a second Bowden-type print head, specifically optimized for support materials. This configuration allows for rapid transitions between the part material and the support material, reducing print times and the risk of contamination. The Combo version includes the new AMS 2 Pro system, which automatically manages up to 4 filament spools (expandable up to 25 colors with additional units).

Technical Specifications

Build Volume:

Single Nozzle (Primary head): 256 x 256 x 260 mm

Dual Nozzle (Both heads): 235.5 x 256 x 256 mm

Print Heads (Toolhead):

System: Dual Nozzle with mechanical lifting (no additional motor for switching).

Primary Extruder (Left): Direct Drive with PMSM servo motor (8.5 kg pushing force).

Secondary Extruder (Right): Bowden type (optimized for support materials).

Max Nozzle Temperature: 300 degrees Celsius.

Included Nozzle Diameter: 0.4 mm (hardened steel).

Speed and Performance:

Max Speed (Primary head): 1000 mm/s.

Max Speed (Secondary head): 200 mm/s.

Max Acceleration: 20,000 mm/s2.

Max Flow Rate: 40 mm3/s (standard) / 65 mm3/s (with optional high-flow hotend).

Temperature Control and Enclosure:

Enclosure: Closed (steel, glass, and plastic).

Active Chamber Heating: Yes, up to 65 degrees Celsius.

Max Heatbed Temperature: 120 degrees Celsius.

Air Filtration: 3-stage system (G3 Pre-filter, HEPA H12, Activated Carbon).

Electronics and Sensors:

Screen: 5-inch Touchscreen (1280 x 720 resolution).

Camera: 1080p Full HD for Live View + Toolhead camera.

Sensors: 31 sensors total (filament run-out, filament tangle, belt tension monitoring, door sensor, etc.).

Storage: 8 GB EMMC built-in + USB port.

Connectivity: Dual-Band Wi-Fi, Bluetooth.

Dimensions and Weight:

External Dimensions: 392 x 406 x 478 mm.

Net Weight: 16.25 kg.

Max Power Consumption: 1600W (at 220V).

Supported Materials:

Primary Head: PLA, PETG, ABS, ASA, TPU, PC, PA, Carbon/Glass Fiber reinforced filaments.

Secondary Head: Dedicated support materials (Bambu Support), PLA, PETG.
