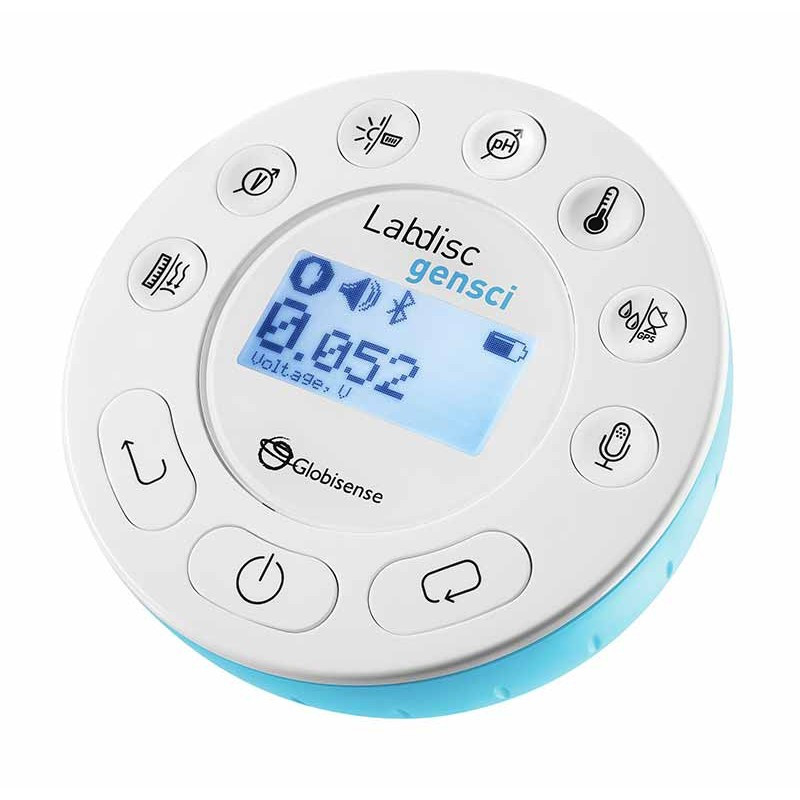

The Labdisc GenSci (General Science) is a portable, all-in-one science laboratory designed for K-12 education. It integrates up to 13 sensors into a single compact device, eliminating the need for complex cables and difficult setups. It is ideal for both classroom and field experiments, providing real-time data collection and immediate visualization on its own screen or via the GlobiLab software.

General Technical Specifications

Built-in Sensors (13): Air Pressure, Ambient Temperature, Current, Distance (Motion), External Temperature, GPS, Light, Microphone, pH, Relative Humidity, Sound Level, Voltage, Universal Input.

Max Sampling Rate: 100,000 samples per second.

Sampling Resolution: 12-bit.

Internal Memory: 1,000,000 samples.

Battery: Rechargeable LiPO 3.6V.

Battery Life: Over 150 hours of use.

Display: Graphical LCD, 64 x 128 pixels.

Communication: USB V2.0 and Bluetooth (V2.0+EDR).

Dimensions: Diameter = 132 mm, Height = 45 mm.

Weight: 300 grams.

Operating Temperature: -10 to 50 °C.

Sensor                                 Measure range                 Accuracy

Air Pressure                       0 la 300 kPa                       ±2.5 kPa

Ambient Temp.                  -10 la 50 °C                        ±1 °C

Current                               -1 la 1 A                            ±2 %

Distance (Motion)              0.4 la 10 m                        ±2 %

GPS                                     N/A                                   ±3 m

Light                                   0 la 55.000 lx                    ±15 %

pH                                       0 la 14 pH                          ±2 %

Relative Humidity               0 la 100 % RH                   ±3.5 %

Sound Level                        56 la 95 dBA                     ±4 dB

Temperatura externa         -25 la 125 °C                     ±2 °C

Voltage                               -30 la 30 V                         ±2 %

The device is compatible with PC, MAC, iPad, Android, and Chromebook platforms, making it a versatile solution for physics, biology, and chemistry.
