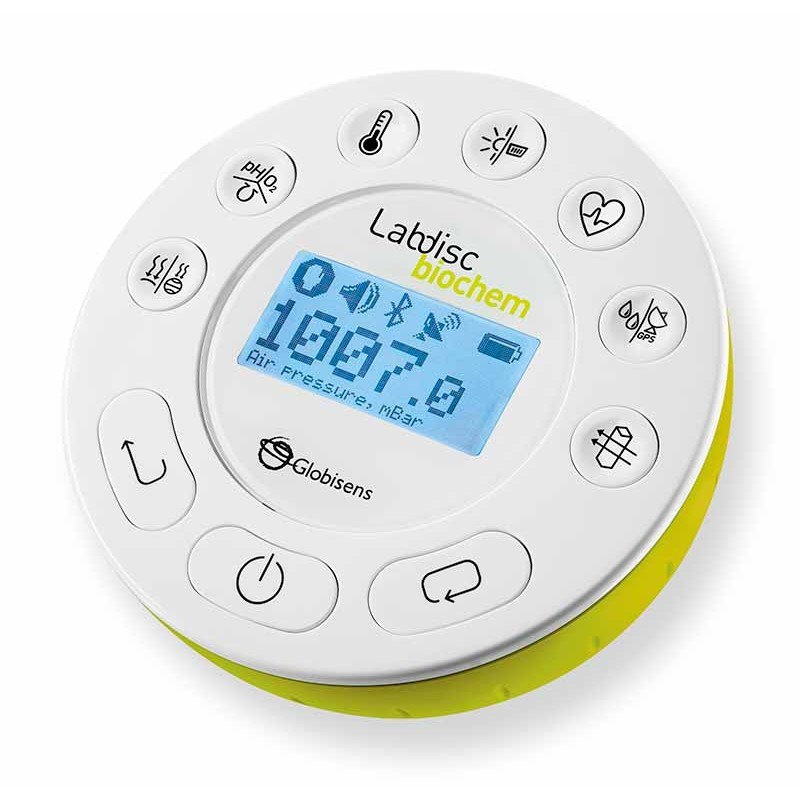

The LabDisc BioChem is an "all-in-one" portable laboratory designed specifically for Biology and Chemistry experiments. It integrates 15 built-in sensors into a single compact disc, eliminating the need for cables and external modules for most school activities. It features a long-life rechargeable battery and a large internal memory, allowing for data collection both in the classroom and in the field.

Analysis Software (GlobiLab)

Platform Support: Windows, Mac, iOS, Android, Linux, and Chrome OS.

Data Display: Line graphs, bar charts, tables, meters, and Google Maps integration.

Functions: Data analysis, markers, zoom, cropping, and text annotations.

Built-in Sensors (15 sensors)

    Air Pressure: 0 to 300 kPa

    Ambient Temperature: -10 to 50 °C

    Barometric Pressure: 300 to 1100 mbar

    Colorimeter: 10% to 90% transmittance (RGB: Red, Green, Blue)

    Conductivity: 0 to 20 mS

    Dissolved Oxygen: 0 to 14 mg/l (electrode sold separately)

    External Temperature: -25 to 125 °C

    GPS: For data mapping and localization

    Heart Rate: 0 to 240 bpm

    Light: 0 to 55,000 lx

    pH: 0 to 14 pH

    Relative Humidity: 0 to 100% RH

    Thermocouple: -200 to 1200 °C

    Turbidity: 0 to 1000 NTU

    Universal Input: For external analog sensors

Technical Hardware Specifications

    Max Sampling Rate: 100,000 samples per second

    Sampling Resolution: 12-bit

    Internal Data Storage: 1,000,000 samples

    Battery: Rechargeable LiPO 3.6V

    Battery Life: Over 150 hours

    Display: Graphical LCD, 64 x 128 pixels

    Keypad: Included for standalone operation

    Connectivity: USB 2.0 and Wireless Bluetooth V2.0+EDR

    Dimensions: Diameter = 132 mm, Height = 45 mm

    Weight: 300 grams

    Standard Compliance: CE and FCC
