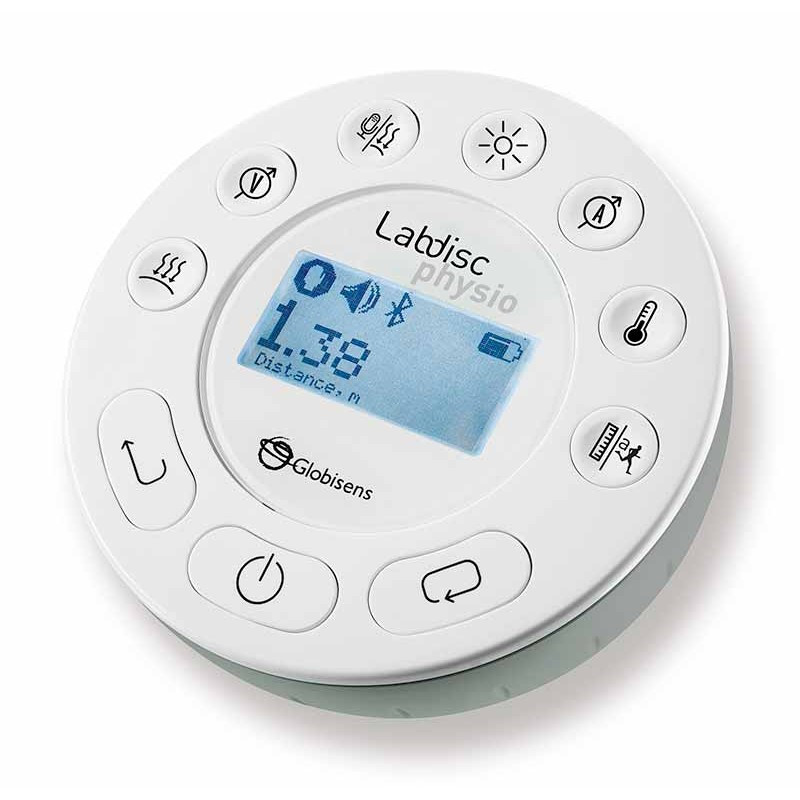

The LabDisc Physio is a comprehensive "all-in-one" portable laboratory specifically designed for Physics experiments. It simplifies complex scientific concepts by providing high-precision sensors and high-speed sampling rates. It is ideal for exploring mechanics, electricity, optics, and thermodynamics, allowing data collection both in the field and in the classroom.

Analysis Software (GlobiLab)

Platform Support: Windows, Mac, iOS, Android, Linux, and Chrome OS.

Math Functions: Derivatives, linear regression, quadratic regression, and FFT (Fast Fourier Transform) for frequency analysis.

Data Display: Real-time line graphs, bar charts, tables, and analog/digital meters.

Typical Experiments: Newton's Laws, free fall, electrical circuits, Boyle's Law, sound wave analysis, and light source efficiency.

Built-in Sensors (11 sensors)

1.Accelerometer (3-axis): -8 to +8 g

2.Air Pressure: 0 to 300 kPa

3.Ambient Temperature: -10 to 50 °C

4.Current: -1 to 1 A

5.Distance (Motion): 0.2 to 10 m (ultrasonic sensor)

6.External Temperature: -25 to 125 °C

7.Light: 0 to 55,000 lx

8.Microphone: 0 to 5 V

9.Low Voltage: -500 to 500 mV

10.Voltage: -30 to 30 V

11.Universal Input (2 ports): For connecting external analog sensors

Technical Hardware Specifications

Max Sampling Rate: 100,000 samples per second (critical for sound wave and fast motion analysis)

Sampling Resolution: 12-bit

Internal Data Storage: 1,000,000 samples

Battery: Rechargeable LiPO 3.6V

Battery Life: Over 150 hours

Display: Graphical LCD, 64 x 128 pixels

Keypad: Included for standalone operation

Connectivity: USB 2.0 and Wireless Bluetooth V2.0+EDR

Dimensions: Diameter = 132 mm, Height = 45 mm

Weight: 300 grams

Standard Compliance: CE and FCC
