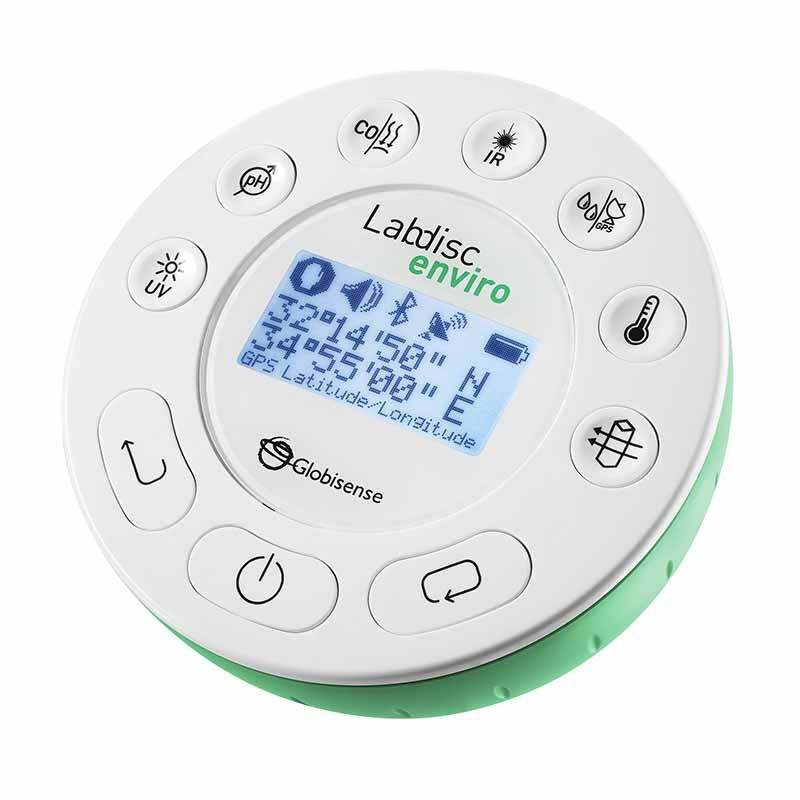

The LabDisc Enviro is a multi-disciplinary portable laboratory specifically designed for environmental science. It allows students and researchers to monitor the health of the environment, equipped with sensors optimized for field work and the analysis of water and air quality. With a battery life exceeding 150 hours and a built-in GPS, it enables data mapping directly onto Google Maps, correlating environmental parameters with exact locations.

Typical Activities and Software (GlobiLab)

Platform Support: Windows, Mac, iOS, Android, Linux, and Chrome OS.

Key Features: Google Maps integration, real-time graphing, data analysis (min, max, average), and data export.

Example Experiments: Water quality in rivers and lakes, noise pollution monitoring, acid rain studies, correlation of temperature/humidity with altitude via GPS, and measuring the UV index throughout the day.

Built-in Sensors (13 sensors)

1.Ambient Temperature: -10 to 50 °C

2.Barometer: 300 to 1100 mbar

3.Colorimeter: 10% to 90% transmittance (RGB)

4.Dissolved Oxygen: 0 to 14 mg/l (electrode sold separately)

5.External Temperature: -25 to 125 °C

6.GPS: For data mapping and localization

7.IR Temperature: -70 to 380 °C (non-contact temperature measurement)

8.pH: 0 to 14 pH

9.Relative Humidity: 0 to 100% RH

10.Sound Level: 56 to 95 dB

11.Turbidity: 0 to 1000 NTU

12.UV Index: 0 to 12

13.Universal Input: For connecting additional external analog sensors

Technical Hardware Specifications

Max Sampling Rate: 100 samples per second

Sampling Resolution: 12-bit

Internal Data Storage: 1,000,000 samples

Battery: Rechargeable LiPO 3.6V

Battery Life: Over 150 hours

Display: Graphical LCD, 64 x 128 pixels, backlit

Keypad: Included for standalone setup and operation

Connectivity: USB 2.0 and Wireless Bluetooth V2.0+EDR

Dimensions: Diameter = 132 mm, Height = 45 mm

Weight: 300 grams

Standard Compliance: CE and FCC
