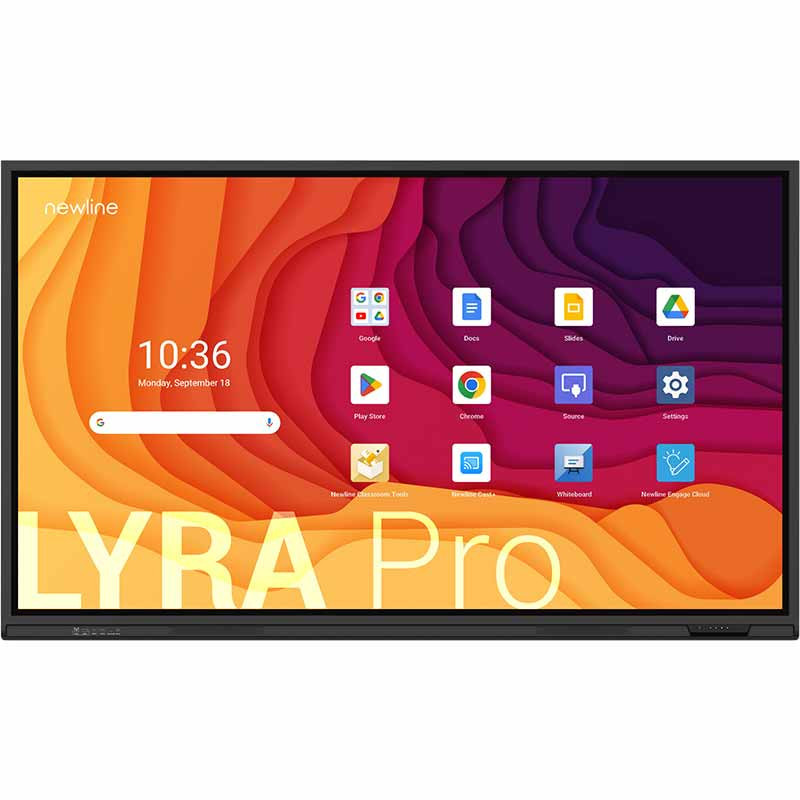

The Newline Lyra Pro 75"(TT-7523QA) is a cutting-edge interactive display designed for larger educational spaces. Being Google EDLA certified, it provides seamless and secure access to the full Google Workspace for Education suite, including the Google Play Store. It features a high-performance Android 14 operating system and "Zero Bonding" technology for superior touch precision. The 4K UHD screen is equipped with antimicrobial glass and hardware-based blue light reduction to ensure both a hygienic and eye-safe experience for students and teachers.

Technical Specifications

Display and Panel:

Diagonal: 75 inch

Active Area: 1650 x 928 mm

Backlight Technology: Direct LED (Wide Color Gamut + Anti Blue Light)

Resolution: 3840 x 2160 (4K UHD)

Brightness: 450 cd/m2

Contrast Ratio: 5000:1

Response Time: 5 ms

Viewing Angle: 178 degrees

Surface Protection: Anti-glare, Anti-fingerprint, and Antimicrobial Tempered Glass (7H Hardness)

Bonding Technology: Certified Zero Bonding

System Performance:

Operating System: Android 14 (Google EDLA Certified)

Chipset (SoC): Amlogic A311D2 octa-core (4 x Cortex-A73 at 2.2 GHz + 4 x Cortex-A53 at 2.0 GHz)

GPU: Arm Mali-G52

RAM: 8 GB DDR4

Internal Storage: 128 GB

Connectivity: Wi-Fi 6 & Bluetooth 5.2 (Integrated replaceable module)

Touch and Writing:

Touch Technology: Stellar Touch Technology

Touch Points: 50 Points (Windows) / 20 Points (Android)

Accuracy: +/- 1 mm

Input Method: 2 Passive Styluses (included), Finger, Palm (includes Palm Rejection)

Audio and Connectivity:

Speakers: 2 x 20 W (Front-facing)

Front I/O Ports: 1x USB-C (65W Power Delivery), 1x HDMI 2.1, 1x USB Touch, 2x USB 3.2 Type-A, 1x Mic In.

Rear I/O Ports: 2x HDMI 2.1, 1x DisplayPort 1.2, 3x USB Touch, 1x USB-C (15W Power Delivery), 3x USB 3.2 Type-A, 1x HDMI Out 2.0, RS232, RJ45 (Gigabit In/Out), OPS Slot, SDM-S Slot, SPDIF, Audio Out.

Physical Dimensions and Power:

Outline Dimensions: 1735 x 1051 x 119 mm

Net Weight: 52 Kg

VESA Mount: 800 x 400 mm

Power Consumption (Eco Mode): 130 W

Standby Power Consumption: < 0.5 W
