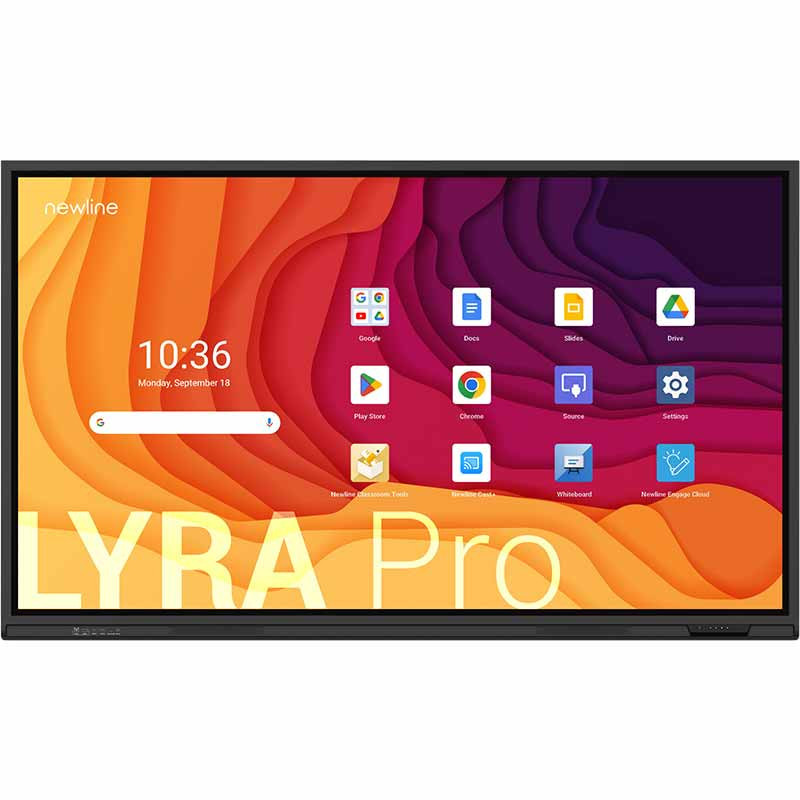

Newline Lyra Pro 86"(TT-8623QA) is designed specifically for large lecture halls and expansive educational environments. As a Google EDLA certified interactive display running on Android 14, it offers seamless integration with Google Workspace for Education and the Google Play Store. It features "Stellar Touch" technology and "Zero Bonding" for an incredibly responsive and natural writing experience. The 4K UHD screen includes professional-grade antimicrobial protection and hardware-based blue light filters to ensure a safe, healthy, and high-performance learning environment.

Technical Specifications

Display and Panel:

Diagonal: 86 inch

Active Area: 1895 x 1066 mm

Backlight Technology: Direct LED (Wide Color Gamut + Anti Blue Light)

Resolution: 3840 x 2160 (4K UHD)

Brightness: 450 cd/m2

Contrast Ratio: 5000:1

Response Time: 5 ms

Viewing Angle: 178 degrees

Surface Protection: Anti-glare, Anti-fingerprint, and Antimicrobial Tempered Glass (7H Hardness)

Bonding Technology: Certified Zero Bonding

Hardware

Operating System: Android 14 (Google EDLA Certified)

Chipset (SoC): Amlogic A311D2 octa-core (4 x Cortex-A73 at 2.2 GHz + 4 x Cortex-A53 at 2.0 GHz)

GPU: Arm Mali-G52

RAM: 8 GB DDR4

Internal Storage: 128 GB

Connectivity: Wi-Fi 6 & Bluetooth 5.2 (Integrated replaceable module)

Touch and Writing:

Touch Technology: Stellar Touch Technology

Touch Points: 50 Points (Windows) / 20 Points (Android)

Accuracy: +/- 1 mm

Input Method: 2 Passive Styluses (included), Finger, Palm (includes Palm Rejection)

Audio and Connectivity:

Speakers: 2 x 20 W (Front-facing)

Front I/O Ports: 1x USB-C (65W Power Delivery), 1x HDMI 2.1, 1x USB Touch, 2x USB 3.2 Type-A, 1x Mic In.

Rear I/O Ports: 2x HDMI 2.1, 1x DisplayPort 1.2, 3x USB Touch, 1x USB-C (15W Power Delivery), 3x USB 3.2 Type-A, 1x HDMI Out 2.0, RS232, RJ45 (Gigabit In/Out), OPS Slot, SDM-S Slot, SPDIF, Audio Out.

Physical Dimensions and Power:

Outline Dimensions: 1982 x 1191 x 119 mm

Net Weight: 65 Kg

VESA Mount: 800 x 400 mm

Power Consumption (Eco Mode): 168 W

Standby Power Consumption: < 0.5 W
