WLKATA MT4 Advanced Kit is a 4-axis educational robotic arm, fully constructed from metal (CNC aluminum alloy), specifically designed for interactive learning, reverse engineering, and "Smart Factory" industrial simulations.

Unlike other robotic arms, the MT4 is modular and allows for complete disassembly and reassembly, making it ideal for understanding robotics mechanics and design. The Advanced Kit version expands the control and manipulation capabilities by adding AI voice recognition technology and a comprehensive range of end-effectors.

It is a "plug-and-play" system that supports visual programming (Blockly), Python, and G-code, and is fully compatible with the Arduino ecosystem, ROS, MATLAB, and simulation platforms such as NVIDIA Omniverse or RoboDK.

Main Technical Specifications

Degrees of Freedom (DOF): 4 + 1 (additional axis for end-effector control).

Payload: 500g (standard) / 600g (maximum).

Precision (Repeatability): 0.1 mm.

Reach: 359 mm.

Construction Material: CNC machined aluminum alloy.

Net Weight: 3.1 kg.

Motors: High-precision, silent stepper motors equipped with reducers.

Main Controller: Based on ATmega 2560 (Arduino compatible).

Communication: USB, Serial/UART, RS485, Bluetooth, Wi-Fi.

Axis Performance (Range of Motion)

Axis 1 (Base): -120° to +140° (max speed 200°/s).

Axis 2 (Lower Arm): -33° to +57° (max speed 200°/s).

Axis 3 (Upper Arm): -14° to +57° (max speed 200°/s).

Axis 4 (End-effector rotation): -180° to +180° (max speed 150°/s).

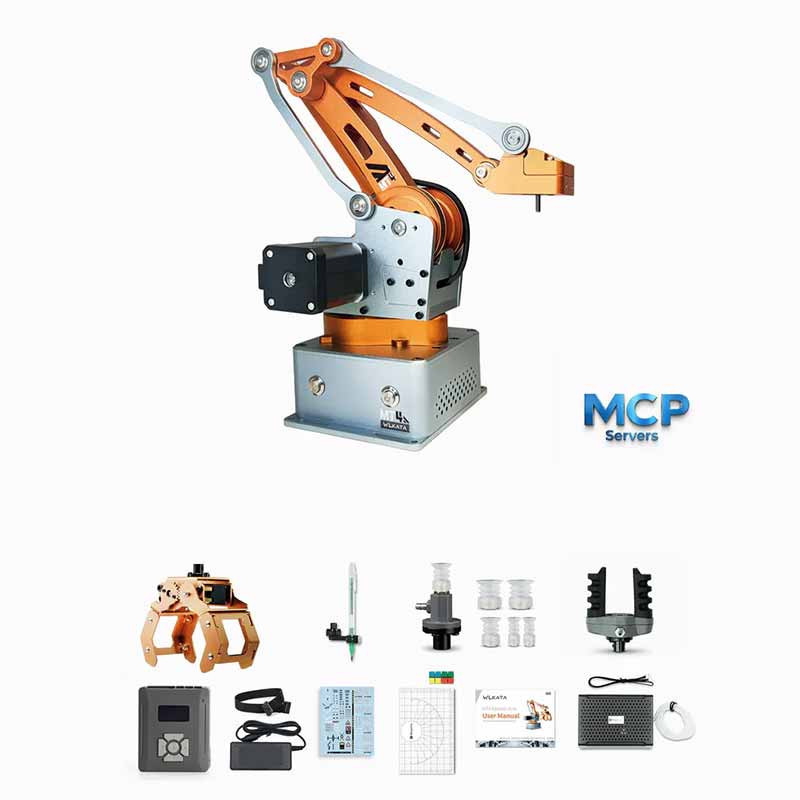

Package Contents (Advanced Kit)

1 x WLKATA MT4 Robotic Arm (Assembled).

1 x Robot Controller & Multifunctional Extender Box (with OLED screen).

1 x AI Assistant Voice Control Box.

1 x MCP Server.

1 x Big Metal Servo Gripper.

1 x Electric Gripper.

1 x Electromagnetic Gripper.

1 x Pneumatic Pro Set (Vacuum pump, suction cup, 2-finger & 3-finger soft grippers).

1 x Pen Holder

1 x Safety Carry Case.

Accessories: 12V Power supply, USB and IDC cables, Handbook, calibration plate, and color cube set

Software and Compatibility

Primary Control: WLKATA Studio (supports Blockly, G-code, Python).

Supported Systems: Windows, Linux, macOS.

Advanced Integration: ROS, MATLAB, RoboDK, NVIDIA Omniverse.

Programming: Supports C++, Python, Java, and control via Serial/UART commands.
