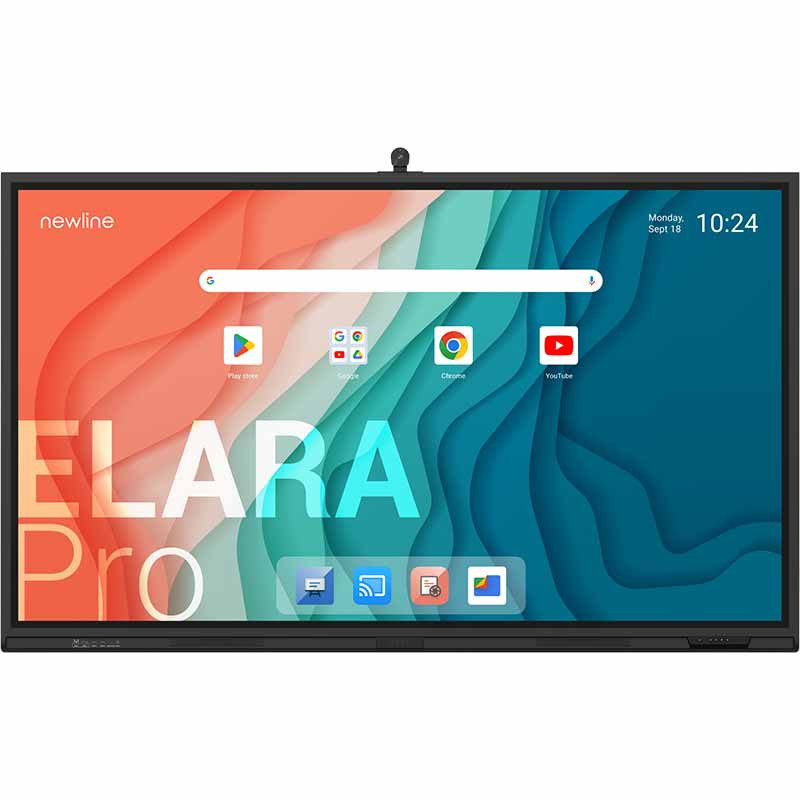

Newline Elara Pro 65"(TT-6523QCA+) is a high-performance interactive solution, Google EDLA certified, which natively integrates the Google Apps ecosystem (Play Store, Google Drive, Meet). Designed to redefine collaboration in corporate workspaces, it features Stellar Touch technology for high-precision writing, advanced security through NFC authentication, and a complete integrated audio-video system. The "Certified Zero Bonding" technology and antimicrobial glass ensure a superior, precise, and safe user experience.

Technical Specifications

Display and Active Area

Diagonal: 65 inch

Active Area (Display Area): 1428 x 803 mm

Resolution: 4K UHD (3840 x 2160 pixels)

Aspect Ratio: 16:9

Backlight Technology: Direct LED (Wide Color Gamut + Hardware Anti-Blue Light)

Glass Surface: Anti-Glare + Anti-Fingerprint + Antimicrobial Tempered Glass

Glass Transparency: 88%

Haze: 2% - 5%

Glass Hardness: 7H

Bonding Technology: Certified Zero Bonding

Brightness: 450 cd/m2

Contrast Ratio: 5000:1

Response Time: 5 ms

Viewing Angle: 178 degrees

Display Colors: 1.07 Billion (10-bit)

Lifetime: ≥ 50,000 hours

Hardware

Operating System: Android 15 (Google EDLA Certified)

Chipset (SoC): Rockchip RK3588 Octa-core (4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz)

GPU: Mali Odin G610 MC4

NPU (AI): 6 Tops

RAM: 16 GB (DDR4)

Storage: 320 GB (Expandable)

Interactivity and Touch

Technology: Stellar Touch Technology

Touch Points: 50 points (Windows), 20 points (Android/Mac/Linux)

Accuracy: ± 1 mm

Scanning Speed: > 100 Hz

Touch Method: Passive Stylus (2 included), Finger, Palm

Special Features: Real Palm Rejection, Object Recognition (stylus/finger/palm)

Audio, Video and Sensors

Front Speakers: 2 x 20 W (6 Ohm)

Subwoofer: 1 x 20 W (4 Ohm) - Rear-facing

Microphones: 8-Microphone Array (Beamforming, Echo cancellation, Noise Reduction), 8m pickup distance

Video Camera: Included (ModCam+), 4K@30 fps Resolution, 120 degree FOV, 15 degree Tilt

Integrated Sensors: Proximity Sensor, Ambient Light Sensor

Security: Integrated NFC Reader

Connectivity (Ports)

Front: 1x USB Type-C (Power Delivery 100W), 1x HDMI 2.1, 1x USB Touch, 2x USB 3.2 Type-A, 1x Mic In.

Rear: 2x HDMI 2.1, 1x DisplayPort 1.2, 3x USB Touch, 1x USB 3.0 Type-C (Power 15W), 1x USB 3.0 Type-C Out, 3x USB 3.2 Type-A, 1x HDMI Out 2.0 (4K@60Hz), RS232, RJ45 Gigabit (In/Out), OPS Slot (80-pin), SDM-S Slot, SPDIF, Audio Line Out.

Wireless: Wi-Fi 6 + Bluetooth 5.2 (Replaceable integrated module)

Dimensions, Weight and Power

External Dimensions: 1513 x 927 x 118 mm

Net Weight: 39 Kg

VESA Mount: 600 x 400 mm

Power Consumption (Standard Mode): 116 W

Power Consumption (Standby): < 0.5 W
