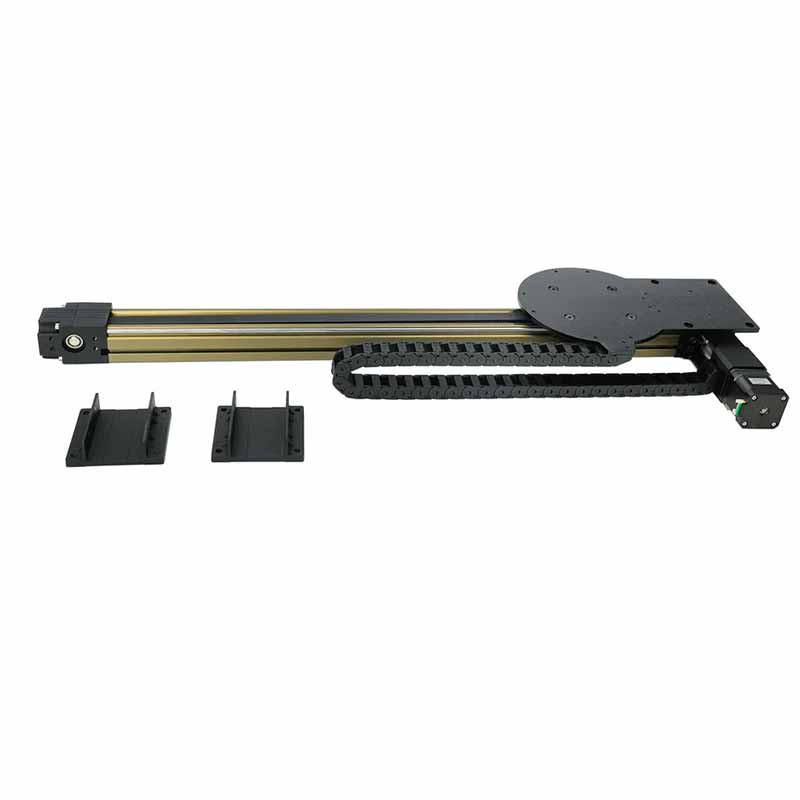

The WLKATA Sliding Rail Set is a professional-grade linear motion accessory designed to extend the workspace of the Mirobot. By adding a 7th axis, it enables the robot to move linearly, allowing for complex tasks like multi-station material handling, long-distance "pick-and-place" operations, and the simulation of automated production lines.

Main Features

Extended Reach: Increases the effective working range of the robot by 500 mm.

Versatile Orientation: Can be installed horizontally for transport tasks or vertically for elevator-style storage simulations.

Plug-and-Play: Fully compatible with the Mirobot's external communication interface and controlled directly via WLKATA Studio.

Durable Construction: Made from high-strength steel and CNC-machined aluminum for smooth, vibration-free movement.

Cable Management: Equipped with an industrial-style cable carrier (drag chain) to protect power and data lines during operation.

Applications

Smart Warehousing: Simulating automated storage and retrieval systems (AS/RS).

Production Line Integration: Moving the robot between different assembly or inspection stations.

Advanced Research: Studying multi-axis coordinated motion and path planning.

Technical Specifications

Effective Travel Distance: 500 mm

Maximum Spee: 6000 mm/min

Material: High-strength Steel and Aluminum Alloy (CNC)

Power Input: 12V / 4A DC (Powered via robot extension box)

Maximum Power: 18W

Connection Interface: PH2.0 (7th axis interface)

Programming Support: Blockly, Python, G-code, WLKATA Studio

Dimensions: Approx. 730 x 110 x 45 mm

Net Weight: 3.27 kg

Gross Weight: 4.6 kg

Package Contents

Sliding Rail Unit: The 500 mm linear actuator track.

Mounting Plate: Specifically designed for secure Mirobot attachment.

Cable Drag Chain: To manage and protect moving wires.

Photoelectric Limit Switch: For safety and "Home" position calibration.

Accessory Kit: Includes all necessary screws, cables, and assembly tools.
