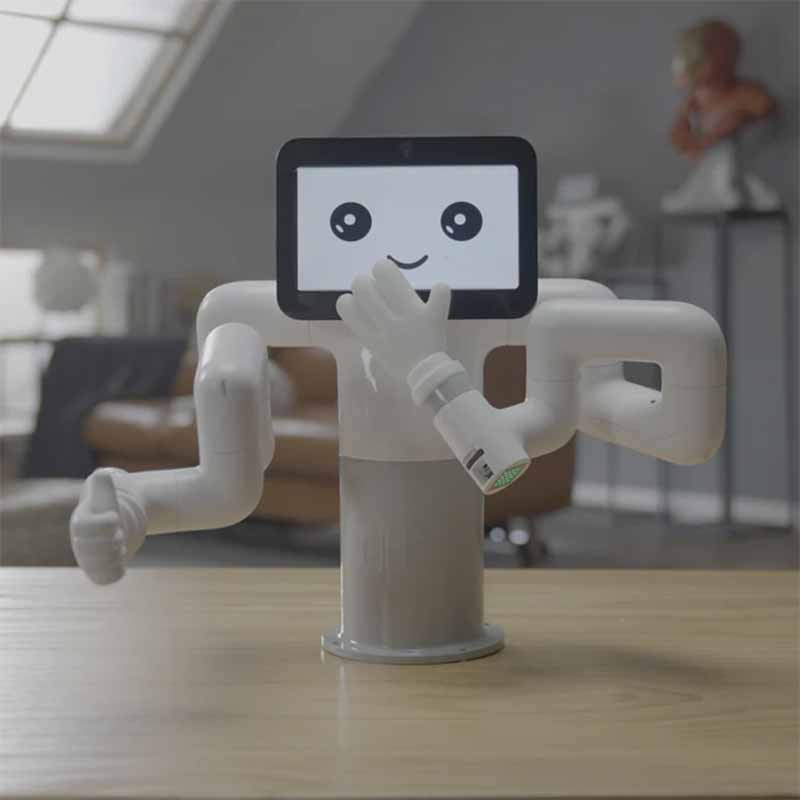

Elephant Robotics myBuddy 280 is a collaborative dual-arm robot specifically designed for educational environments, research, and AI (Artificial Intelligence) development. It combines the functionality of two myCobot 280 robotic arms into a compact humanoid structure, offering extended flexibility for complex manipulation applications and human-robot interaction.

Powered by a Raspberry Pi 4B mainboard, the myBuddy 280 Pi features a total of 13 axes of motion (6 degrees of freedom for each arm, plus a rotation axis at the waist). The robot integrates state-of-the-art visual and programmable interaction elements: a 7-inch touchscreen capable of displaying over 20 dynamic expressions, and two 2-megapixel HD cameras optimized for facial recognition, body tracking, and object or QR code identification.

Thanks to its open-source ecosystem, the platform offers full support for ROS (Robot Operating System), Python, and the myBlockly visual programming environment. The arm end-effectors are compatible with LEGO connectors and include Grove and 3.3V I/O expansion interfaces, allowing for the quick attachment of accessories such as suction pumps, sensors, or various types of grippers.

Technical Specifications

Degrees of Freedom (DoF): 13 axes (6 axes per arm + 1 waist axis)

Reach: 280 mm for each arm

Maximum Payload: 250 g for each arm

Repeatability (Precision): +/- 0.5 mm

Main Controller: Raspberry Pi 4B (4-core @ 1.5 GHz)

Arm Coprocessors: 3 x M5Stack Atom modules (based on ESP32)

Integrated Screen: 7-inch interactive touchscreen

Vision System: 2 x 2-Megapixel HD Cameras

Arm Visual Feedback: 2 x 5x5 RGB LED Matrixes (on Atom modules)

Connectivity: Wi-Fi (2.4G / 5G), Bluetooth, 1x Gigabit Ethernet

Physical Interfaces: 2x USB 3.0, 2x USB 2.0, 2x microHDMI, RJ45, Grove

End-effector Extensions: GPIO, USB Type-C, LEGO compatible connectors

I/O Pin Voltage: 3.3 V

Operating Systems: Ubuntu 18.04 / Debian (compatible with Windows, macOS, Linux)

Languages / Programming Environments: Python, C++, myBlockly, ROS (Rviz and MoveIt)

Net Weight: 2.75 kg
