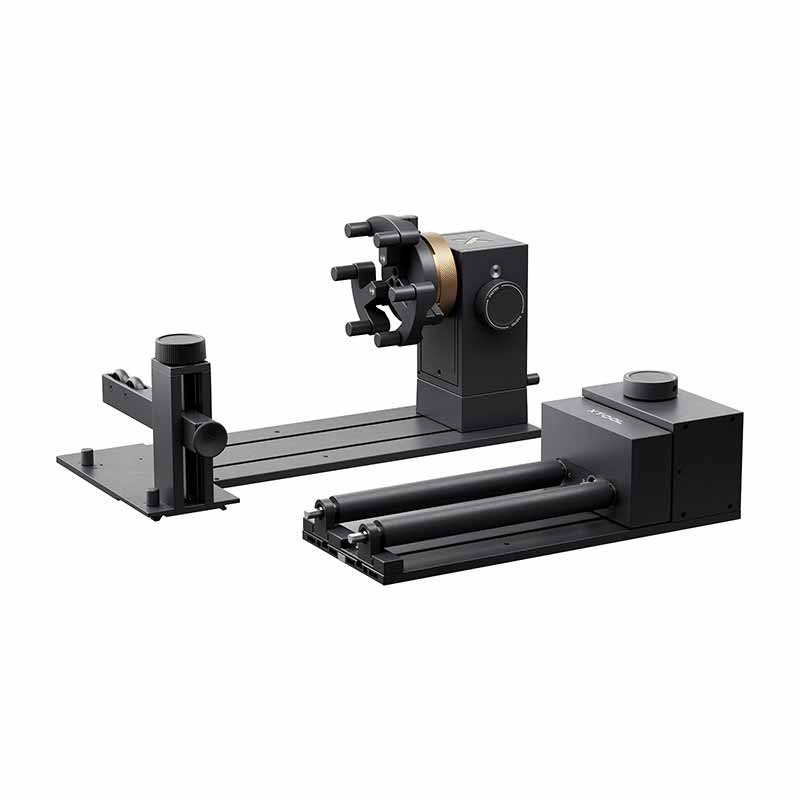

The xTool RA3(P5010454) is the world's first smart rotary attachment featuring MagSwap™ technology. This magnetic quick-swap system allows you to switch between 4 different rotary modes in seconds without any tools. It is designed to handle everything from extra-long cylinders and mugs with handles to spheres and delicate rings. Its smart integration with XCS software ensures automatic module recognition, making laser engraving on curved surfaces faster and more accurate than ever.

Technical Specifications

4-in-1 Functionality:

Roller Rotary: For extra-long or heavy cylindrical objects.

Chuck Rotary: For irregular shapes, mugs with handles, or tumblers.

Sphere Rotary: Specialized module for spherical objects (e.g., ornaments, baseballs).

Ring Rotary: High-precision module for rings and jewelry.

Performance & Precision:

MagSwap™ Technology: Magnetic module switching in less than a second.

Engraving Precision: Up to 0.01 mm.

Minimum Rotation Angle: 0.45°.

Maximum Speed: 360°/s.

Object Capacity:

Roller Diameter Range: 3 mm – 198 mm.

Chuck Diameter Range: 0 mm – 100 mm.

Sphere Diameter Range: Up to 100 mm.

Ring Diameter Range: 11 mm – 70 mm.

Maximum Object Length: Unlimited (in Roller mode).

Construction & Compatibility:

Material: Premium Anodized Aluminum Alloy.

Connectivity: Plug-and-play via the laser machine's rotary port.

Software Support: xTool Creative Space (XCS) with auto-recognition, LightBurn.

Compatible Machines: xTool P3, P2, S1, F1, F1 Ultra, and D1 Pro.
