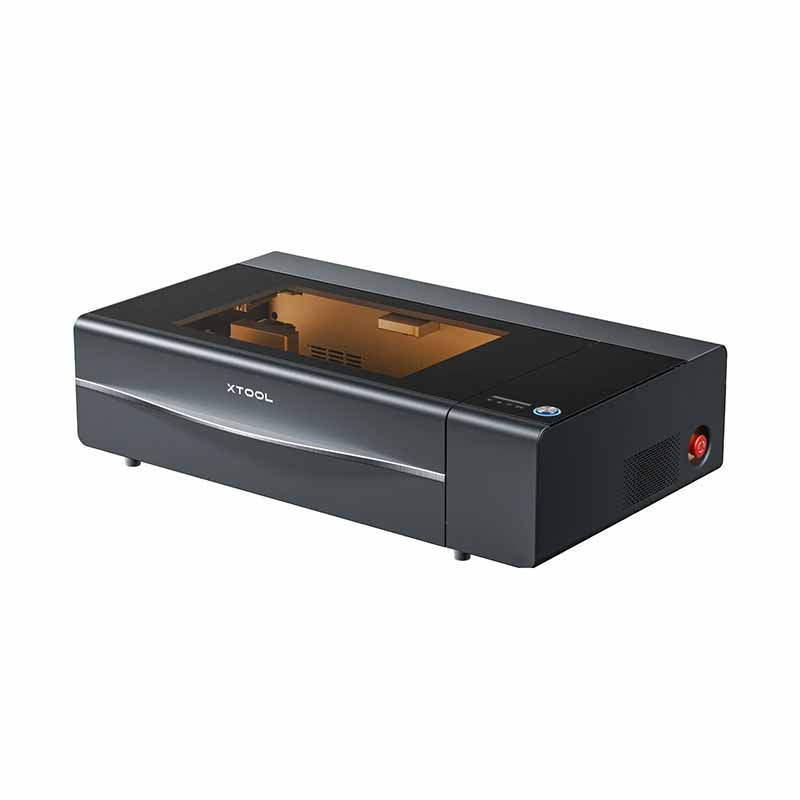

xTool P2S 55W CO2 Class I Grey(P1030632) is a next-generation desktop CO2 laser cutter that delivers 55W of power and high efficiency for creative workshops. The Class I version is fully enclosed, certified for maximum safety in educational or home environments (the laser is not accessible during operation).

The P2S brings significant upgrades over previous models, featuring optimized processing speeds and a dual 16MP camera system for millimeter precision. The machine includes intelligent functions such as 3D curved surface engraving and automatic focusing, capable of cutting through thick materials in a single pass within a fully secured work environment.

Technical Specifications

Laser & Performance:

Laser Type: CO2 Glass Tube

Laser Power: 55W

Max Engraving Speed: 600 mm/s

Movement Precision: 0.01 mm

Max Cutting Capacity: 18mm Walnut or 20mm Black Acrylic in a single pass.

Vision System & Automation:

Camera System: Dual 16MP (Panoramic camera for the entire bed + Close-up camera on the laser head).

Focusing: Intelligent Autofocus (via distance sensors).

AI Functions: 3D Curved Surface Engraving and automatic Batch Processing.

Work Area:

Bed Size: 680 x 360 mm

Effective Work Area: 600 x 308 mm

Max Workpiece Height: 71 mm (Compatible with Riser Base for taller objects).

Safety & Integrated Hardware:

Laser Class: Class I (Fully enclosed, ideal for schools, offices, or home use).

Air Assist: Integrated system (automatically adjustable via software).

Cooling: Built-in water cooling system (no external chiller required).

Safety Features: Flame detection sensors and automatic emergency stop when the lid is opened.

Software & Connectivity:

Compatible Software: xTool Creative Space (XCS), LightBurn.

Connectivity: USB, Wi-Fi, Ethernet.

Operating Systems: Windows, macOS, iPadOS.

Physical Specs:

Product Dimensions: 1000 x 639 x 268 mm

Weight: ~45 kg
