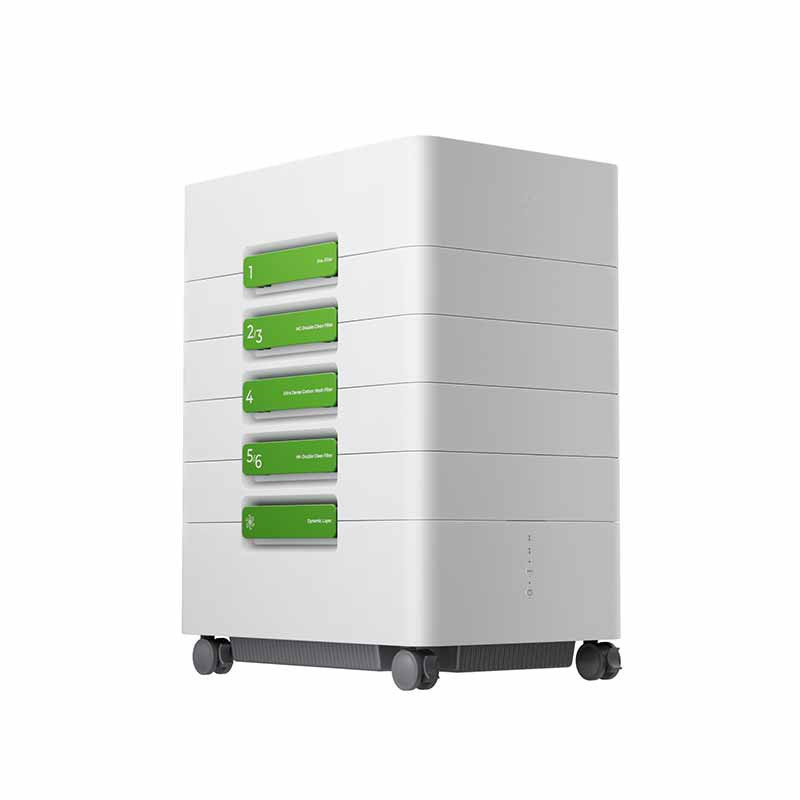

The xTool SafetyPro AP2 Max(P0101000132) is a high-performance, industrial-grade smoke purifier designed specifically for high-power laser cutters like the xTool P3 and P2. The "Max" version features an enhanced airflow system and a high-capacity multi-stage filtration core to effectively eliminate smoke, toxic gases, and persistent odors generated during laser processing. With its intelligent sensing technology, the AP2 Max can automatically synchronize with the laser machine to provide a seamless and safe working environment.

Technical Specifications

Filtration Performance:

Filtration System: 4-Stage Integrated Filter (Pre-filter + H13 HEPA Filter + Premium Activated Carbon + Gas Absorption Layer).

Purification Efficiency: 99.97% for particles as small as 0.3 microns.

Max Airflow (CADR): Up to 450 m³/h (high-suction capacity for intensive cutting).

Noise Level: 55–63 dB (optimized for indoor workshop environments).

Smart Features:

Auto-Mode: Built-in PM2.5 sensors monitor smoke density and automatically adjust the fan speed.

Smart Linkage: Synchronized Start/Stop functionality when connected to the laser cutter via a data cable.

Filter Life Indicator: Real-time monitoring and alerts (visual/audible) when filters require replacement.

Digital Display: Provides instant feedback on air quality and system status.

Construction & Connectivity:

Housing Material: High-strength, flame-retardant metal casing.

Mobility: Equipped with industrial-grade swivel casters with locking brakes.

Inlet Diameter: 100 mm (compatible with xTool P-series and standard laser exhaust hoses).

Power Supply: 110V/220V AC.

Power Consumption: 250W.

Physical Dimensions:

Product Dimensions: Approx. 520 x 325 x 650 mm.

Net Weight: Approx. 32 kg (including filters).

Compatibility: xTool P3, xTool P2, xTool S1 (with adapter), and other medium-to-large CO2/Fiber laser machines.
