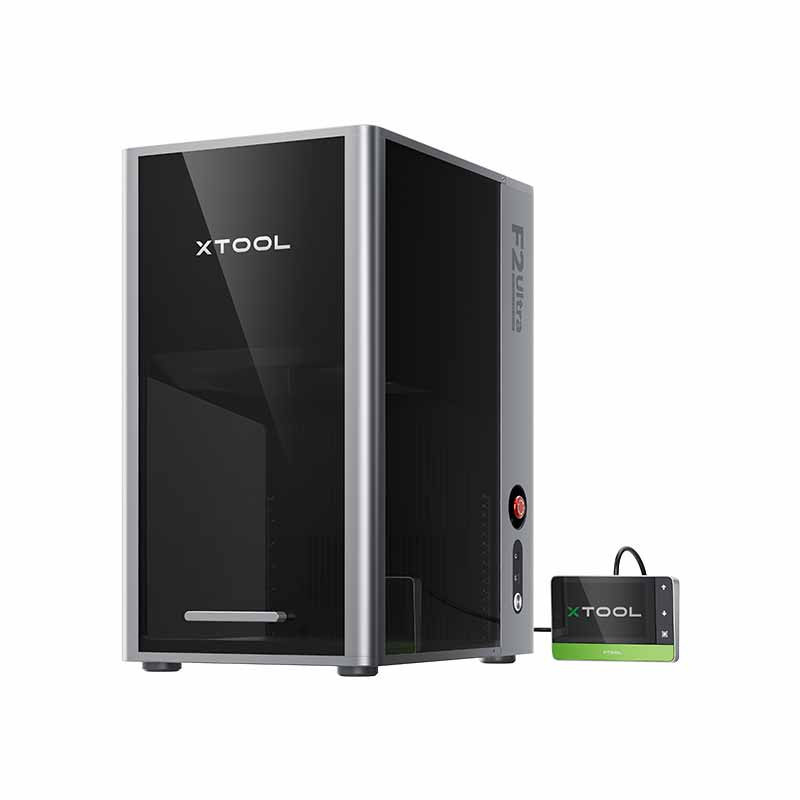

xTool F2 Ultra Standalone (P1010155) is a high-performance dual-laser system that combines two distinct laser technologies into a single galvanometer-driven machine. This model is a powerhouse for workshops requiring both industrial metal marking and high-power organic material processing.

Dual-Laser System: It integrates a 60W MOPA Fiber Laser (for metals and color engraving on stainless steel) and a 40W Blue Diode Laser (for wood, acrylic, and organic materials). Switching between the two is handled via software, requiring no manual hardware changes.

MOPA Technology: Unlike standard fiber lasers, MOPA allows for pulse duration control, enabling vibrant color engraving on stainless steel and titanium, as well as high-contrast marking on plastics without melting them.

Ultra-Galvo Speed: Achieving speeds up to 10,000 mm/s, this machine is designed for mass production and near-instant customization.

3D Surface Engraving: The advanced Galvo system allows the laser to engrave on curved or irregular surfaces while maintaining perfect focus across the topography.

Standalone Operation: This version includes a built-in controller and internal storage, allowing you to run projects directly from the machine's interface without needing a permanent PC connection.

Class 1 Safety: The fully enclosed workspace ensures maximum user protection, filtering laser radiation and allowing for efficient smoke extraction.

While the UV model is specialized for microscopic precision and engraving inside glass, the F2 Ultra (Fiber + Diode) is the industrial workhorse. It is designed for those who need raw power to cut wood/acrylic and industrial-grade speed to permanently mark any type of metal.

Technical Specifications

Laser Type 1: Fiber MOPA (60W)

Laser Type 2: Blue Diode (40W)

Max Working Speed: 10,000 mm/s

Working Area: 220 x 220 mm (expandable with accessories)

Engraving Resolution: Up to 0.001 mm

Max Workpiece Height: 145 mm

Focus System: LiDAR Autofocus + Red Light Preview

Camera: High-resolution camera for precise positioning

Connectivity: Wi-Fi, USB, Ethernet, Rotary Accessory Port

Compatible Software: xTool Creative Space (XCS), LightBurn

Supported OS: Windows, macOS, iPadOS

Cutting Capability: Wood up to 20mm, Acrylic up to 15mm (via 40W Diode)

Machine Dimensions: 294 x 429 x 520 mm

Net Weight: Approx. 25 kg

Compatible Materials

60W MOPA Fiber Laser: All metals (stainless steel, aluminum, gold, silver, copper, platinum), plastics (ABS, PVC), stone, and ceramics. Supports color marking on stainless steel and titanium.

40W Diode Laser: Wood, acrylic (dark/colored), leather, cardboard, cork, rubber, and certain coated glass types.
