The xTool S1 20W(P1030504) is an enclosed laser cutting and engraving system that provides an optimal balance between precision and power. It is certified as a Class 1 laser product, meaning it is safe for use in educational environments, workshops, or at home without the need for safety goggles (the cover filters the laser radiation).

This model stands out with its Pin-point positioning technology, which uses a precise coordinate system instead of traditional cameras, eliminating lens distortion. Additionally, the 3D Curve Engraving feature allows for processing objects that are not perfectly flat, such as bowls or wooden spoons.

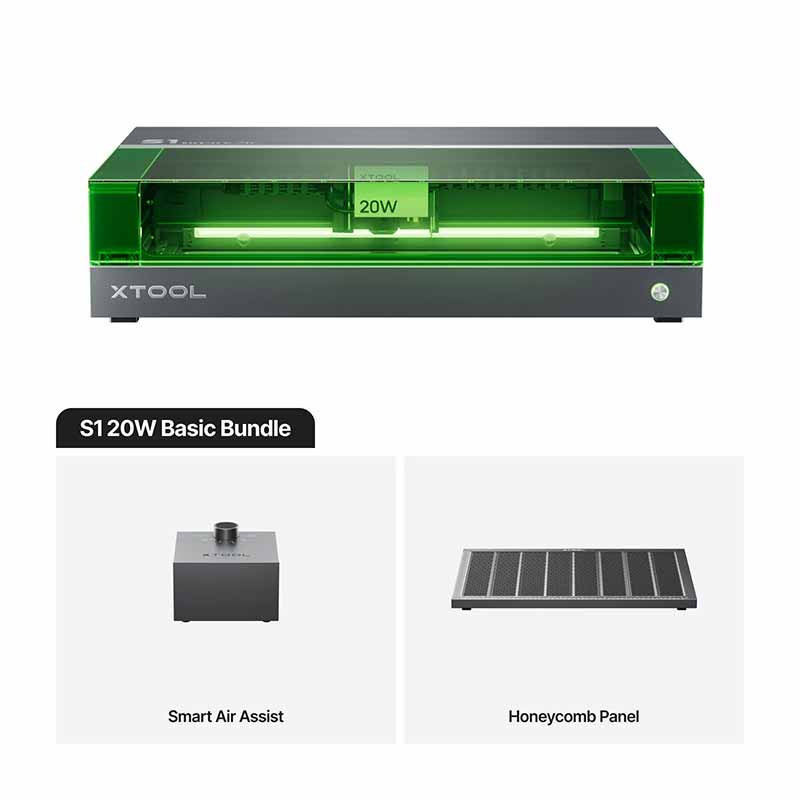

Included in package(P1030504

-1 x xTool S1 20W: This is the main unit, including the enclosed safety machine and the 20W diode laser head. The 20W module is highly prized for its smaller laser spot size (0.08×0.06 mm), which allows for much finer detail in engravings compared to the 40W version, while still being powerful enough for most cutting tasks.

-1 x Air Assist 2.0_AUTO: This is the advanced version of the air pump. The AUTO feature means the software (XCS or LightBurn) automatically adjusts the airflow. It stays low or off during engraving to prevent dust from settling, and kicks into high gear during cutting to prevent charring and blow out flames.

-1 x Honeycomb Panel: This is an essential bed for cutting. It lifts your material off the solid base of the machine, allowing smoke and heat to escape underneath. This prevents "flashback" burns on the back of your wood or acrylic, ensuring a clean finish on both sides.

Technical Specifications

Laser Performance:

Optical Output Power: 20W

Laser Type: Diode (455 nm wavelength)

Max Working Speed: 600 mm/s

Laser Spot Size: 0.08 x 0.06 mm (ultra-fine for high detail)

Movement Precision: 0.01 mm

Work Area:

Working Area: 498 x 330 mm (larger than A3 format)

Max Object Height: 42 mm (up to 125-133 mm using the Riser Base accessory)

Extensibility: Supports the AutoPassthrough system for long projects (up to 3000 mm)

Smart Features & Safety:

Focusing: Smart Auto-focus via distance sensor

Flame Sensors: 5-direction detection with automatic shutdown

Motion Protection: Tilt and impact sensor (stops if moved during operation)

Interlock: Immediate laser shutdown when the lid is opened

Software & Connectivity:

Compatible Software: xTool Creative Space (XCS - free), LightBurn (paid)

Operating Systems: Windows, macOS, iOS, Android, iPadOS

Connection: USB, Wi-Fi

File Formats: SVG, DXF, JPG, JPEG, PNG, BMP, TIF

Dimensions & Weight:

External Dimensions: 765 x 561 x 183 mm

Net Weight: approx. 20 kg

Cutting Capacity (20W):

Cuts basswood up to 10-12 mm in a single pass.

Cuts black acrylic up to 8-10 mm.

Direct engraving on anodized metal, stainless steel, glass, ceramic, and wood.
