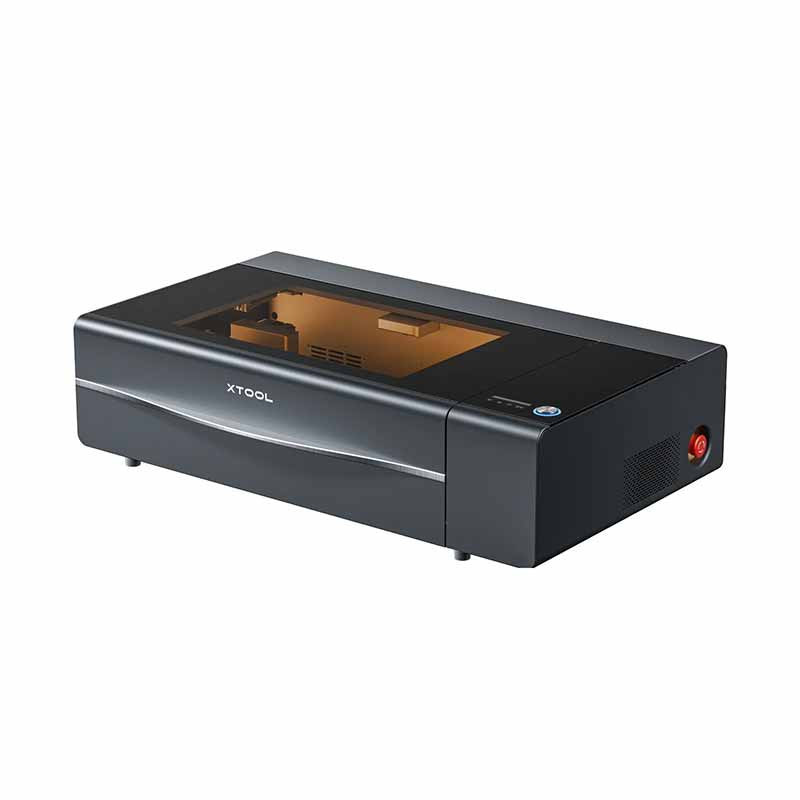

xTool P2S 55W Class IV Grey(P1030634) is the enhanced iteration of the renowned P2 series, offering a powerful 55W CO2 laser in a versatile desktop format. The Class IV designation highlights its advanced Passthrough capability, allowing users to process materials of unlimited length by feeding them through the machine's specialized slots.

This model features a dual 16MP camera system for ultra-precise job positioning and the innovative 3D Curve Engraving technology, which automatically maps curved surfaces for consistent results. With its upgraded processing speed and integrated safety features, the P2S is a professional tool designed for high-output creators and small businesses.

Technical Specifications

Laser & Performance:

Laser Type: CO2 Glass Tube

Laser Power: 55W

Max Engraving Speed: 600 mm/s

Precision: 0.01 mm

Cutting Capacity: Up to 18mm Walnut or 20mm Black Acrylic in a single pass.

Vision & Smart Features:

Camera System: Dual 16MP Cameras (Panoramic + Close-up)

Preview Accuracy: 0.3 mm

Intelligent Functions: 3D Curve Engraving (surface reconstruction), Batch Processing (AI-driven object recognition), and Auto-focus.

Work Area & Material Handling:

Bed Size: 680 x 360 mm

Max Processing Area: 600 x 308 mm

Max Workpiece Height: 71 mm (Expandable to 215 mm with the optional Riser Base).

Passthrough Capability: Supports materials with unlimited length (up to 500 mm wide).

Safety & Integrated Hardware:

Laser Class: Class IV (due to the open-passthrough design).

Air Assist: Built-in, software-controlled adjustable air flow.

Cooling: Integrated closed-loop water cooling system.

Safety Sensors: Lid-open auto-stop, flame detection, and emergency stop button.

Software & Connectivity:

Software: xTool Creative Space (XCS), LightBurn.

Operating Systems: Windows, macOS, iPadOS.

Connectivity: Wi-Fi, USB, Ethernet (LAN).

Supported Formats: SVG, DXF, JPG, PNG, BMP, PDF

Physical Specs:

Product Dimensions: 1000 x 639 x 268 mm

Weight: ~45 kg
