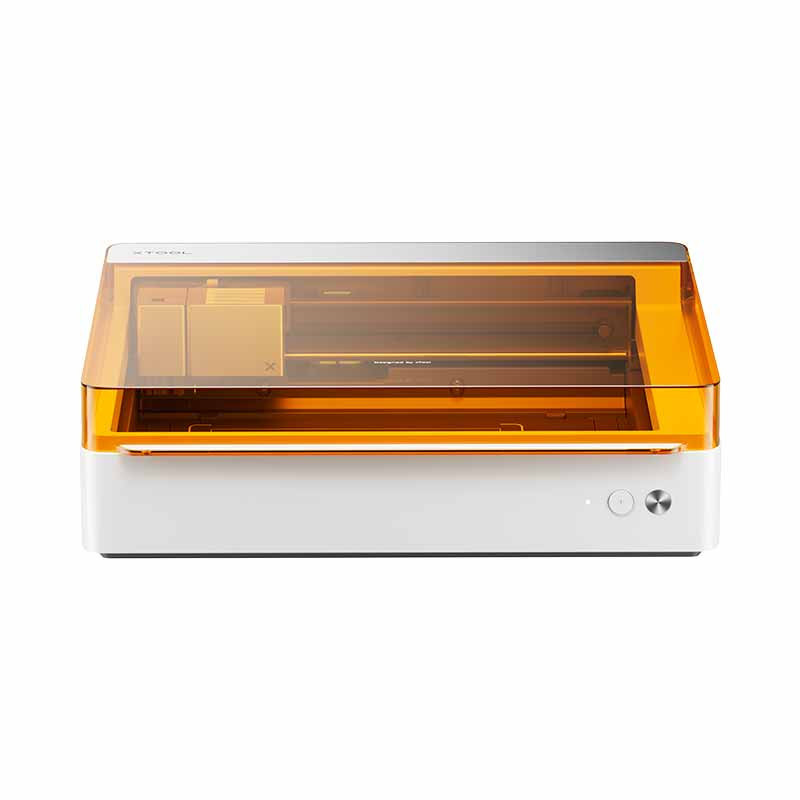

xTool M1 Ultra 20W Standard/Basic Kit(P1030682) is billed as the world’s first "4-in-1" craft machine. It integrates four distinct functions into one compact desktop unit: laser engraving/cutting, blade cutting,

4-in-1 Versatility: The machine allows users to seamlessly switch between different heads to process an unprecedented variety of materials. You can laser-cut thick wood, blade-cut delicate vinyl, or draw intricate designs using markers.

20W Diode Laser: The 20W optical output is powerful enough to cut through 10mm basswood or 8mm black acrylic in a single pass, while remaining precise enough for detailed engravings.

Easy-Switch System: The working modules can be swapped in seconds using a magnetic, plug-and-play mounting system, making it easy to transition from a laser project to a blade-cutting task.

PinPoint™ Positioning System: Instead of a traditional wide-angle camera, the M1 Ultra uses a sophisticated point-positioning system to map the material's workspace, ensuring high accuracy even on irregular shapes.

Safety & Accessibility: Classified as a Class 1 laser product, it features a fully enclosed design with a filtering lid and an emergency stop sensor that halts operations if the cover is opened.

This package includes the M1 Ultra main unit, the 20W laser module, the fine-point blade holder and blades, a pen holder with a set of markers, and a basic pack of materials to get started. Note that the inkjet printing module and the rotary attachment are sold separately or found in higher-tier bundles.

Technical Specifications

Laser Power: 20W (455nm Blue Diode)

Included Modules: Laser, Fine-point blade, Pen holder/Marker

Max Laser Speed: 400 mm/s

Working Area: 300 x 300 mm

Max Cutting Thickness (Laser): 10 mm Basswood / 8 mm Black Acrylic

Max Cutting Thickness (Blade): Up to 2.5 mm (depending on blade type)

Work Precision: 0.01 mm

Positioning System: PinPoint™ Positioning

Connectivity: USB, Wi-Fi

Compatible Software: xTool Creative Space (XCS)

Supported OS: Windows, macOS, iPadOS, Android

Dimensions: 620 x 498 x 178 mm

Net Weight: 12 kg

Compatible Materials

Laser Module: Wood, dark acrylic, leather, glass (engraving), ceramics, stainless steel (engraving), cardboard.

Blade Module: Vinyl, heat transfer vinyl (HTV), paper, cardstock, fabric, felt, faux leather.

Pen Module: Paper, invitations, envelopes, labels.
