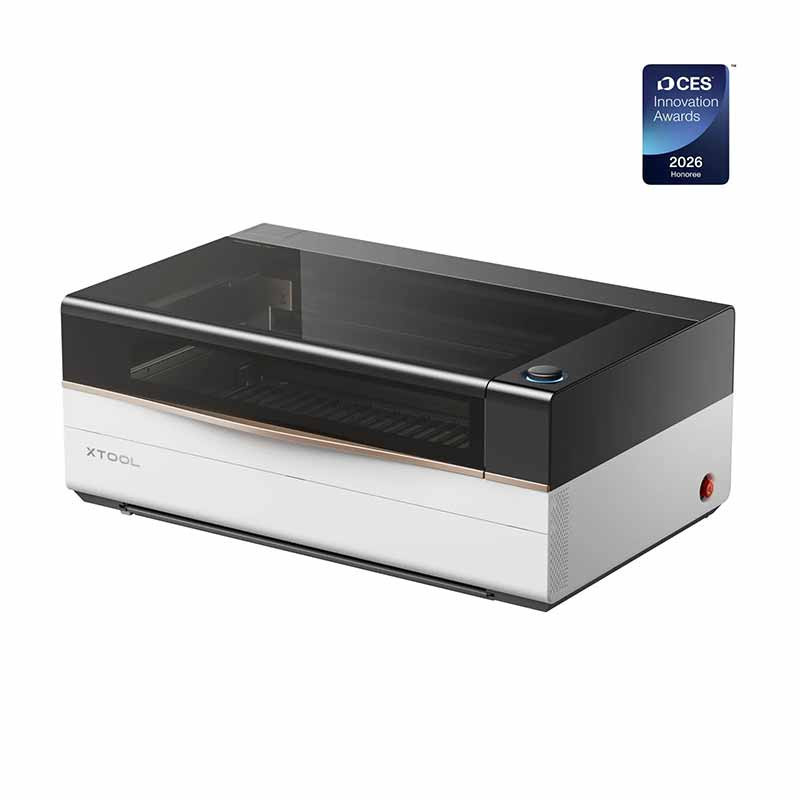

The xTool P3(P0101000119) is the ultimate flagship CO2 laser cutter, engineered to bring industrial-grade productivity to a desktop format. Featuring a high-power 80W laser tube, it effortlessly cuts through thick materials like 20mm wood or 25mm acrylic in a single pass.

The machine introduces the ACS (Automated Creation System), which leverages LiDAR technology and dual 16MP high-resolution cameras to automate focus and positioning. With its massive work area and an integrated Inverter Chiller for continuous operation, the P3 is the perfect solution for small businesses, educators, and pro-makers looking for speed, precision, and safety.

Technical Specifications

Laser Performance:

Laser Type: CO2 Glass Tube (10,640 nm)

Laser Power: 80W

Cutting Capacity: Up to 20mm Basswood / 25mm Black Acrylic (single pass)

Engraving Speed: Up to 1200 mm/s

Max Acceleration: 19,600 mm/s² (2G)

Laser Spot Size: 0.15 x 0.15 mm

Work Area & Capacity:

Bed Size: 914 x 457 mm (36 x 18 inches)

Max Workpiece Height: 220 mm (with integrated Auto-Lift base)

Expandability: Supports Conveyor Rail system for processing materials up to 3000 mm in length.

Vision & Intelligence:

Cameras: Dual 16MP HD Cameras (Panoramic SkyView + Close-up Head Camera)

Focusing System: LiDAR-based Intelligent Autofocus

Positioning Accuracy: 0.01 mm

Visual Accuracy: 0.2 mm

Cooling & Safety:

Cooling System: Built-in Inverter Compressor Chiller (active water cooling)

Safety Class: Class 1 (Fully enclosed for maximum safety)

Fire Safety: 5-point flame detection and optional CO2 auto-fire extinguishing system.

Air Filtration: High-power internal fan; compatible with SafetyPro AP2 Max smoke purifier.

Software & Connectivity:

Compatible Software: xTool Creative Space (XCS), LightBurn.

Operating Systems: Windows, macOS, iPadOS, iOS, Android.

Connectivity: Wi-Fi, USB, Ethernet (LAN).

File Formats: SVG, DXF, JPG, PNG, BMP, PDF, TIF.

Physical Dimensions:

Machine Dimensions: 1250 x 780 x 496 mm

Net Weight: ~105 kg

Power Consumption: 1400W (Max)
